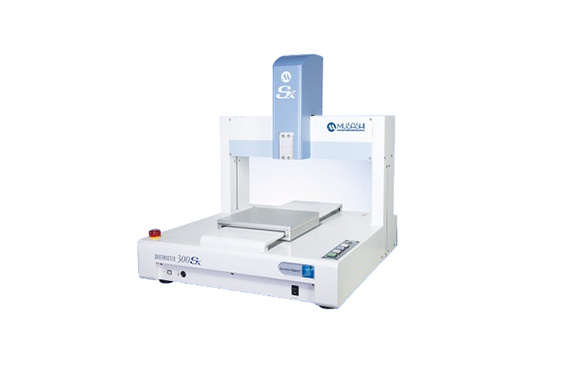

Musashi Desktop Coating Robot SHOTMASTER SX
Manufacturer: Musashi Engineering, Inc.
Features
■High speed
– 800mm/s high-speed operation, top of its class.
■High precision
– ±0.01mm repeat positioning accuracy.
■Equipped with synchronous speed function.
– Maintains a constant drawing width even in corners. Minimizes takt time and achieves ultimate production efficiency.
■Full range of functions and options
– New teaching pendant.
– Equipped with interactive navigation function.
– Stopwatch function.
– Dispensing condition switching function.
– Data transfer function between robots.
– Supports Japanese, English, and Chinese.
■Full hardware configuration
– 26/26 external input/output points.
– USB communication.
– Z-axis brake function.
■Nozzle adjuster (optional)
– Automates nozzle position adjustment after syringe replacement.
Specifications
| Name | SHOTmini100SX | SHOTmini200SX | SHOTMASTER300SX | |||
|---|---|---|---|---|---|---|
| Model | SM100SX-3A-SS | SM200SX-3A-SS | SM200SX-4A-SS | SM300SX-3A-SS | SM300SX-4A-SS | |
| Controlled Axes | 3 Axes | 3 Axes | 4 Axes | 3 Axes | 4 Axes | |
| XY Axis Stroke | 100 mm | 200 mm | 300 mm | 80 mm | ||
| Z Axis Stroke | 50 mm | 50 mm | 80 mm | |||
| W Axis Stroke | – | – | ±360° | – | ±360° |
| Name | SHOTMASTER400SX | SHOTMASTER500SX | ||
|---|---|---|---|---|
| Model | SM400SX-3A-SS | SM400SX-4A-SS | SM500SX-3A-SS | SM500SX-4A-SS |
| Controlled Axes | 3 Axes | 4 Axes | 3 Axes | 4 Axes |
| XY Axis Stroke | 400 mm | 500 mm | ||
| Z Axis Stroke | 80 mm | 80 mm | ||
| W Axis Stroke | – | ±360° | – | ±360° |
