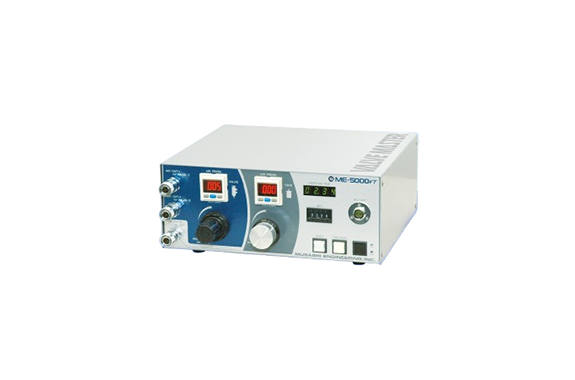

Musashi Digital Control Valve Controller VALVE MASTER
Manufacturer: Musashi Engineering, Inc.
Features
・Improved pressure stability eliminates variations in coating amount.
・Digital control provides excellent operability and reproducibility.
・Controller allows centralized management of coating conditions.
・Strengthened external interface allows monitoring of coating operations, making it ideal for equipment installation.
Specifications
| Name | Digital control valve controller VALVE MASTER | |
|---|---|---|
| Model | ME-5000VT-CTR | ME-5000VT-LP-CTR |
| Dispensing Mode | Timed mode/Manual mode | |
| Liquid feed pressure setting range | 0.005 to 0.700 MPa | 0.005 to 0.100 MPa |
| Valve drive pressure setting range | 0.200 to 0.700 MPa | 0.200 to 0.400 MPa |
| Key Features | Stopwatch function |
