Musashi Engineering

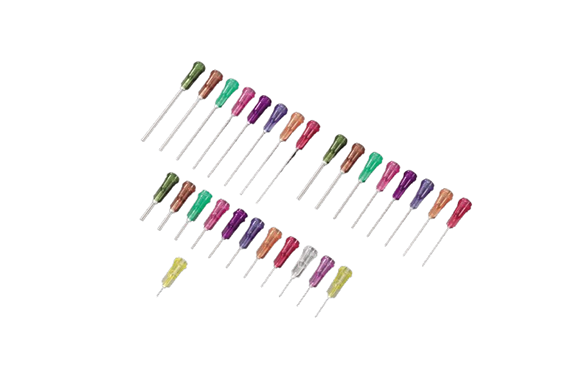

Musashi Double Threaded Plastic Needle
Manufacturer: Musashi Engineering, Inc.
Features
-Double thread design at the base of the needle allows for safe and secure syringe attachment.
-Large four-bladed design ensures secure screwing into the syringe.
-A wide range of needle lengths and gauges expands the range of application.
-Nozzle size can be identified by the color of the needle base.
Specifications
| Gauge | Inner Diameter (mm) | Outer Diameter (mm) | Color | Needle Length 6.4mm Model | Needle Length 12.7mm Model | Needle Length 25.4mm Model | Needle Length 38.1mm Model | Quantity (pcs / pack) |
|---|---|---|---|---|---|---|---|---|
| 14 | 1.52 | 1.83 | Dark Green | DPN-14G-1 | DPN-14G-2 | DPN-14G-3 | 50 pcs / pack | |
| 15 | 1.37 | 1.65 | Brown | DPN-15G-1 | DPN-15G-2 | DPN-15G-3 | 50 pcs / pack | |
| 18 | 0.84 | 1.27 | Light Green | DPN-18G-1 | DPN-18G-2 | DPN-18G-3 | 50 pcs / pack | |
| 20 | 0.58 | 0.91 | Pink | DPN-20G-1 | DPN-20G-2 | DPN-20G-3 | 50 pcs / pack | |
| 21 | 0.51 | 0.81 | Purple | DPN-21G-1 | DPN-21G-2 | DPN-21G-3 | 50 pcs / pack | |
| 22 | 0.41 | 0.71 | Blue | DPN-22G-1 | DPN-22G-2 | DPN-22G-3 | 50 pcs / pack | |
| 23 | 0.33 | 0.64 | Orange | DPN-23G-1 | DPN-23G-2 | DPN-23G-3 | 50 pcs / pack | |
| 25 | 0.25 | 0.51 | Rose | DPN-25G-1 | DPN-25G-2 | DPN-25G-3 | 50 pcs / pack | |
| 27 | 0.20 | 0.41 | White | DPN-27G-1 | – | – | 50 pcs / pack | |
| 30 | 0.15 | 0.30 | Light Purple | DPN-30G-1 | – | – | 50 pcs / pack | |
| 32 | 0.10 | 0.23 | Yellow | DPN-32G-0 | – | – | 50 pcs / pack |
