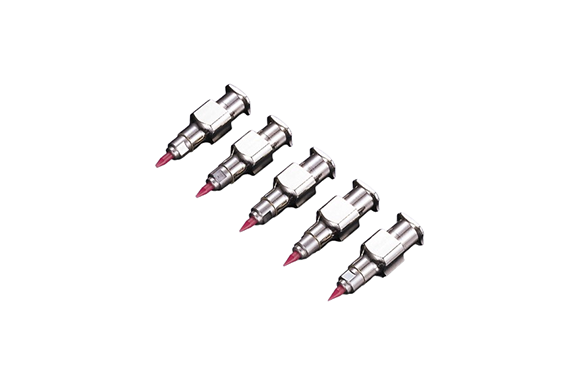

Musashi High-Precision Nozzle
Manufacturer: Musashi Engineering, Inc.
Features
・By combining with the MUSASHI dispenser, it is possible to achieve extremely small, dotted dispensing and ultra-precise, drawing dispensing.
・Highly airtight, the lineup also includes a double-start needle base thread specification that is ideal for low-viscosity liquids.
・Supports drawing ultra-fine seals. ・A new thin-wall FN specification has also been developed, with the outer and inner diameters having a 70% reduction in thickness.・Click here
if you are considering dispensing in even smaller areas .
Specifications
| Inner diameter (mm) | Outer diameter (mm) | Luer-lock spec | Double-thread screw spec | Quantity |
|---|---|---|---|---|
| Model | Model | |||
| 0.60 | 0.70 | FN-0.60N | FN-0.60ND | 1 piece / 1 pack |
| 0.50 | 0.60 | FN-0.50N | FN-0.50ND | 1 piece / 1 pack |
| 0.40 | 0.50 | FN-0.40N | FN-0.40ND | 1 piece / 1 pack |
| 0.30 | 0.40 | FN-0.30N | FN-0.30ND | 1 piece / 1 pack |
| 0.25 | 0.35 | FN-0.25N | FN-0.25ND | 1 piece / 1 pack |
| 0.20 | 0.30 | FN-0.20N | FN-0.20ND | 1 piece / 1 pack |
| 0.15 | 0.25 | FN-0.15N | FN-0.15ND | 1 piece / 1 pack |
| 0.10 | 0.20 | FN-0.10N | FN-0.10ND | 1 piece / 1 pack |
| 0.05 | 0.15 | FN-0.05N | FN-0.05ND | 1 piece / 1 pack |
| 0.04 | 0.14 | FN-0.04N | FN-0.04ND | 1 piece / 1 pack |
| 0.03 | 0.13 | FN-0.03N | FN-0.03ND | 1 piece / 1 pack |
| 0.02 | 0.12 | FN-0.02N | FN-0.02ND | 1 piece / 1 pack |
| Inner diameter (mm) | Outer diameter (mm) | Luer-lock spec | Double-thread screw spec | Quantity |
|---|---|---|---|---|
| Model | Model | |||
| 0.60 | 0.63 | FN-0.60N-F | FN-0.60ND-F | 1 piece / 1 pack |
| 0.50 | 0.53 | FN-0.50N-F | FN-0.50ND-F | 1 piece / 1 pack |
| 0.40 | 0.43 | FN-0.40N-F | FN-0.40ND-F | 1 piece / 1 pack |
| 0.30 | 0.33 | FN-0.30N-F | FN-0.30ND-F | 1 piece / 1 pack |
| 0.25 | 0.28 | FN-0.25N-F | FN-0.25ND-F | 1 piece / 1 pack |
| 0.20 | 0.23 | FN-0.20N-F | FN-0.20ND-F | 1 piece / 1 pack |
| 0.15 | 0.18 | FN-0.15N-F | FN-0.15ND-F | 1 piece / 1 pack |
| 0.10 | 0.13 | FN-0.10N-F | FN-0.10ND-F | 1 piece / 1 pack |
| 0.05 | 0.08 | FN-0.05N-F | FN-0.05ND-F | 1 piece / 1 pack |
| 0.04 | 0.07 | FN-0.04N-F | FN-0.04ND-F | 1 piece / 1 pack |
| 0.03 | 0.06 | FN-0.03N-F | FN-0.03ND-F | 1 piece / 1 pack |
| 0.02 | 0.05 | FN-0.02N-F | FN-0.02ND-F | 1 piece / 1 pack |
