Musashi Engineering

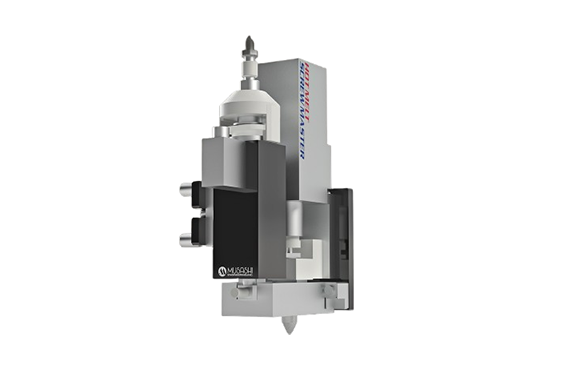

Musashi HM-MSD3 Hot Melt Compatible Screw Dispenser
Manufacturer: Musashi Engineering, Inc.
Model: HM-MSD3
Features
– Extensive track record in fine application of PUR (reactive) hot melt.
– Achieves line width of 0.1 mm.
– Achieves application speed of 100 mm/s or more.
– Temperature can be set up to 160°C.
– Improved maintainability.
Specifications
| name | Hot melt compatible screw dispenser HM-MSD3 |
|---|---|
| Model | HM-MSD3 |
| Allowable liquid transfer pressure | Maximum 0.500MPa |
| Allowable temperature control range | Maximum 160°C |
| Applicable liquid material viscosity | 50,000 to 500,000 mPa·s |
| Container capacity | 30 (syringe), 300 mL (cartridge) |
| Key Features | Suck back, multi-preset, auto increment, synchronized speed, RS-232C communication, Japanese/English display switching |
