Musashi Engineering

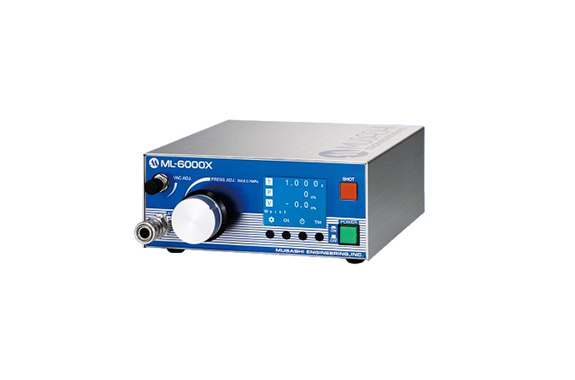

Musashi ML-6000X High-precision digital dispenser
Manufacturer: Musashi Engineering, Inc.
Model: ML-6000X
Features
The best-selling model “ML-5000XII” has been updated!
Achieves excellent dispensing performance with the air pulse stabilization circuit (PAT.).
■Significantly expanded device functions!
・Complies with Industry 4.0, outputs various error signals.
・Equipped with a simple log function. ・
Equipped with a simple remaining amount detection function.
・Can register product types as channels.
・Equipped with many other next-generation functions.
Specifications
| High-precision digital dispenser ML-6000X | ||
|---|---|---|
| Model | ML-6000X-CTR-N-VHR | ML-6000X-CTR-N-GP |
| Dispensing Mode | Timed mode/Manual mode | Timed mode/Manual mode |
| Discharge pressure setting range | 5.0 to 700.0 [kPa] | 5.0 to 700.0 [kPa] |
| Discharge time setting range | 0.001 to 99.999s, 0.01 to 999.99s, 0.1 to 9999.9s | (digits can be switched using the icon switch) |
| Vacuum pressure setting range | 0 to -20.0 [kPa] (supply air pressure 600 [kPa]) | 0 to -20.0 [kPa] (supply air pressure 600 [kPa]) |
| Vacuum pressure control system | Precision Needle Valve | Standard Needle Valve |
| Key Features | Operation history, dispensing counter, alarm, remaining amount warning, pressure abnormality, solenoid valve alarm, channel registration, channel switching, channel copy, key lock, interval dispensing, stopwatch, display language switching, manual/timed mode switching | |
| Number of Channels | 100CH | |
