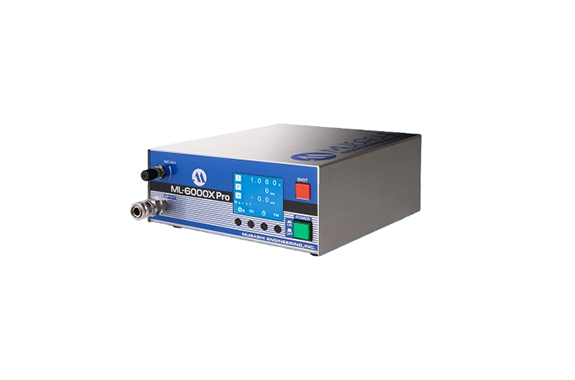

Musashi ML-6000XPro High-Precision Digital Dispenser

Manufacturer: Musashi Engineering, Inc.
Model: ML-6000XPr

Features

A higher-end model of the high-precision digital dispenser “ML-6000X”!
Achieves excellent dispensing performance with an air pulse stabilization circuit (PAT.).
■Significantly expanded device functionality!
・[Additional function] Pressure can be set from the device side.
・Compatible with Industry 4.0, various error signals can be output.
・Equipped with a simple log function.
・Equipped with a simple remaining amount detection function.
・Channel registration for product types is possible.
・Equipped with many other next-generation functions.

Specifications

High-precision digital dispenser ML-6000XPro
Model	ML-6000XP-CTR-V5-N-VHR	ML-6000XP-CTR-V2-N-VHR	ML-6000XP-CTR-V5-N-GP	ML-6000XP-CTR-V2-N-GP
Dispensing Mode	Timed mode/Manual mode	Timed mode/Manual mode	Timed mode/Manual mode	Timed mode/Manual mode
Discharge pressure setting range	30.0 to 500.0 [kPa]	5.0 to 200.0 [kPa]	30.0 to 500.0 [kPa]	5.0 to 200.0 [kPa]
Discharge time setting range	0.001 to 99.999s, 0.01 to 999.99s, 0.1 to 9999.9s	0.001 to 99.999s, 0.01 to 999.99s, 0.1 to 9999.9s	(digits can be switched using the icon switch)
Vacuum pressure setting range	0 to -20.0 [kPa] (supply air pressure 600 [kPa])	0 to -10.0 [kPa] (supply air pressure 400 [kPa])	0 to -20.0 [kPa] (supply air pressure 600 [kPa])	0 to -10.0 [kPa] (supply air pressure 400 [kPa])
Vacuum pressure control system	Precision Needle Valve		Standard Needle Valve
Key Features	Auto increment, auto slope, operation history, dispensing counter, alarm, remaining amount warning, pressure abnormality, solenoid valve alarm, channel registration, channel switching, channel copy, key lock, interval dispensing, display language switching, manual/timed mode switching, stopwatch
Number of Channels	100CH
