Musashi Engineering

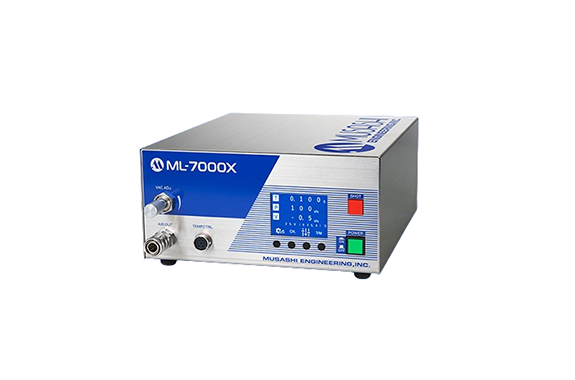

Musashi ML-7000X Temperature control CTR built-in air pulse dispenser
Manufacturer: Musashi Engineering, Inc.
Model: ML-7000X
Features
■Cost reduction –
Great value with an all-in-one unit
■Space saving –
The space required for two units is consolidated into one unit
■Easy settings –
Check settings for discharge and temperature control on one screen
Specifications
| High-precision digital dispenser ML-7000X | ||||
|---|---|---|---|---|
| Model | ML-7000X-CTR-V5 | ML-7000X-CTR-V2 | ||
| Dispensing Mode | Timed mode/Manual mode | Timed mode/Manual mode | ||
| Discharge pressure setting range | 30 to 500 [kPa] | 5 to 200 [kPa] | ||
| Discharge time setting range | 0.001 to 9999.999 seconds | 0.001 to 9999.999 seconds | ||
| Vacuum pressure setting range | 0.0 to -20.0 [kPa] | 0.0 to -10.0 [kPa] | ||
| Key Features | Operation history, dispensing counter, alarm function, remaining amount warning, pressure abnormality, solenoid valve alarm, channel registration, channel switching, channel copy, key lock, interval dispensing, display language switching, manual/timed mode switching, stopwatch, auto-increment function, auto-slope function, auto-tuning | |||
| Number of Channels | 100CH | |||
