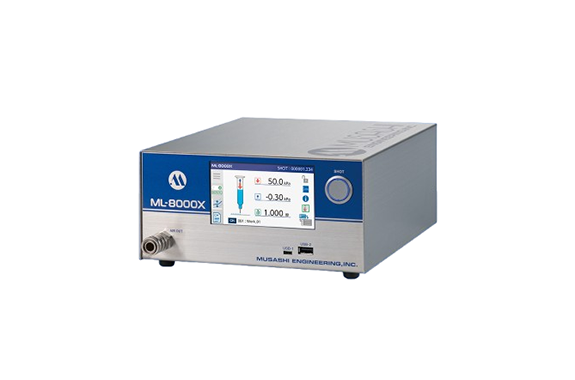

Musashi ML-8000X Fully digitally controlled dispenser
Manufacturer: Musashi Engineering, Inc.
Model: ML-8000X
Features
■Improved functionality
: Automatic control of vacuum pressure.
■Enhanced production management functions
: Equipped with logs, self-diagnosis, and emergency stop.
■Improved operability
: Equipped with a 4.3-inch touch panel.
■Improved compatibility with PCs
: Equipped with a USB port.
■Network connection support
: Equipped with a LAN port.
・Ethernet compatible.
Specifications
| Fully digitally controlled dispenser ML-8000X | ||||
|---|---|---|---|---|
| Model | ML-8000X-CTR-V7-N | ML-8000X-CTR-V7-P | ML-8000X-CTR-V2-N | ML-8000X-CTR-V2-P |
| Dispensing Mode | Timed mode/Manual mode | Timed mode/Manual mode | Timed mode/Manual mode | Timed mode/Manual mode |
| Discharge pressure setting range | 20.0 to 700.0 [kPa] | 5.0 to 200.0 [kPa] | 20.0 to 700.0 [kPa] | 5.0 to 200.0 [kPa] |
| Discharge time setting range | 0.010 to 9999.999 seconds | 0.010 to 9999.999 seconds | 0.010 to 9999.999 seconds | 0.010 to 9999.999 seconds |
| Vacuum pressure setting range | 0.00 to -5.00 [kPa] | 0.00 to -5.00 [kPa] | 0.00 to -5.00 [kPa] | 0.00 to -5.00 [kPa] |
| Signal Specifications | NPN | PNP | NPN | PNP |
| Key Features | Auto increment, auto slope, express shot, discharge condition correction, self-diagnosis, date and time, operation history, discharge counter, password lock, parameter backup, display language switching (Japanese/English/Chinese), display unit switching (kPa/bar), I/O function allocation | |||
| Number of Channels | 400CH | |||
