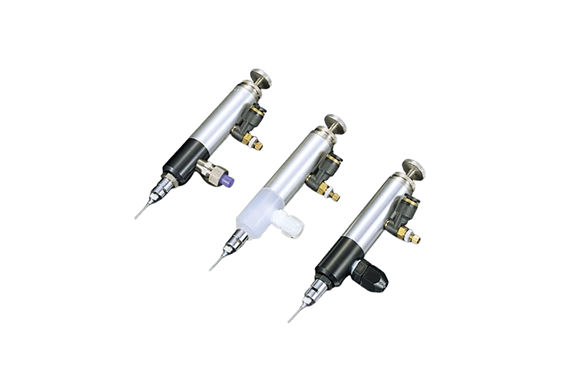

Musashi NCV-10 Needle Control Valve
Manufacturer: Musashi Engineering, Inc.
Model: NCV- 10
Features
・Stable dispensing of liquid materials containing fillers.
・One-port control system that can be easily converted from the syringe system.
・Two-port control system that is ideal for more precise dispensing.
・The lineup also includes a fluororesin type and a UV material compatible type that are ideal for dispensing highly corrosive materials and anaerobic liquid materials.
Specifications
| Name | Needle control valve NCV-10 | |||||
|---|---|---|---|---|---|---|
| Model | NCV-10-1P | NCV-10-2P | NCV-10-T-1P | NCV-10-T-2P | NCV-10-U-1P | NCV-10-U-2P |
| Applicable Viscosity | ~50 Pa・s | ~50 Pa・s | ~50 Pa・s | ~50 Pa・s | ~50 Pa・s | ~50 Pa・s |
| Operating air supply pressure range | 0.35 to 0.5 MPa | 0.3 to 0.5 MPa | 0.35 to 0.5 MPa | 0.3 to 0.5 MPa | 0.35 to 0.5 MPa | 0.3 to 0.5 MPa |
| Maximum liquid material supply pressure | 0.5 MPa | 0.5 MPa | 0.5 MPa | 0.5 MPa | 0.5 MPa | 0.5 MPa |
| Liquid material supply port | Rc1/8 | Rc1/8 | Rc1/8 | Rc1/8 | Rc1/8 | Rc1/8 |
| Applicable liquid materials | Low to medium viscosity liquid materials in general | Anaerobic material with filler | UV material |
