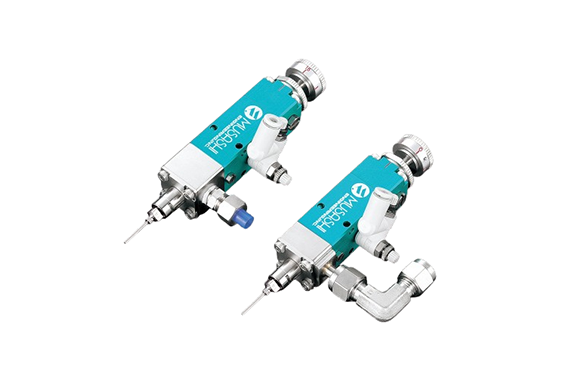

Musashi NCV-17 Needle Control Valve
Manufacturer: Musashi Engineering, Inc.
Model: NCV-17
Features
・Compatible with minute amounts of UV and filler-containing liquids.
・Reduces air bubble contamination.
・Diaphragm structure prevents liquid from seeping into sliding parts.
・Square, compact, and lightweight, ideal for mounting on automated machines.
Specifications
| Name | Needle Control Valve NCV-17 | |
|---|---|---|
| Model | NCV-17-1P-1N | NCV-17-1P-S6 |
| Applicable Viscosity | ~50 Pa・s | |
| Operating air supply pressure range | 0.35 to 0.5 MPa | |
| Maximum liquid material supply pressure | 0.5 MPa | |
| Liquid material supply port | Rc1/8 | 6mm outer diameter stainless steel pipe |
