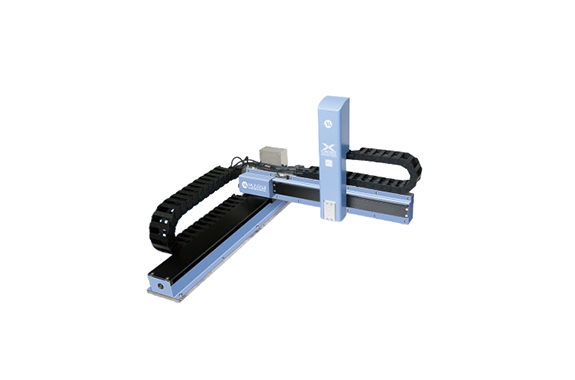

Musashi Orthogonal-Robot CROSSMASTER SX
Manufacturer: Musashi Engineering, Inc.
Features
■Realize improvement of yield by high-level application quality!
・Class-maximum ±0.01mm repetitive positioning accuracy.
・Keeps the drawing width constant even in the corner.
・Compatible with application pattern editing software MuCADV.
・Field network support.
Specifications
| name | CROSS MASTER SX | ||||
| Model | XM230SX-3A-L-SS XM230SX-3A-R-SS | XM340SX-3A-L-SS XM340SX-3A-R-SS | XM460SX-3A-L-SS XM460SX-3A-R-SS | XM680SX-3A-L-SS XM680SX-3A-R-SS | |
| Control Axes | 3 axes | ||||
| X-axis Operating Range | 200mm | 300mm | 400mm | 600mm | |
| Y-axis Operating Range | 300mm | 400mm | 600mm | 800mm | |
| Z-axis Operating Range | 150mm | ||||
