Musashi Engineering

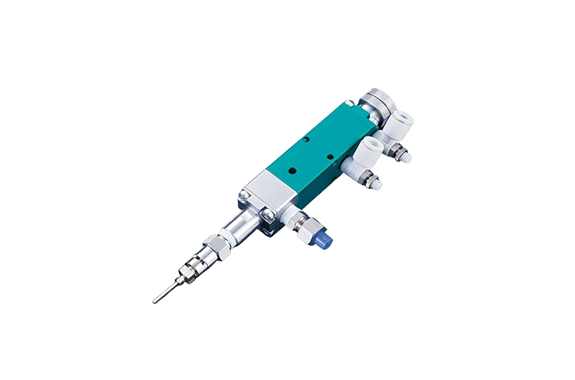

Musashi PCV-12 Piston control valve
Manufacturer: Musashi Engineering, Inc.
Model: PCV- 12
Features
– The suck-back mechanism prevents dripping and puddling.
– The diaphragm structure prevents the liquid from getting into the sliding parts.
– Square, compact and lightweight, it is ideal for mounting on automated machines.
Specifications
| Name | Piston control valve PCV-12 |
|---|---|
| Model | PCV-12-2P |
| Applicable Viscosity | ~100 Pa・s |
| Operating air supply pressure range | 0.35 to 0.6 MPa |
| Maximum liquid material supply pressure | 0.5 MPa |
| Liquid material supply port | Rc1/8 |
