Musashi Engineering

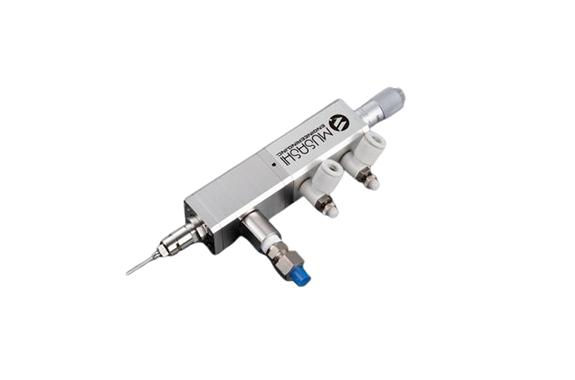

Musashi PPV-5 Volumetric Metering Valve
Manufacturer: Musashi Engineering, Inc.
Model: PPV-5
Features
・A volumetric metering valve with a unique mechanism that achieves high sealing performance.
・The micrometer allows for accurate and easy setting of the dispensing volume.
・Excellent corrosion resistance.
・Highly accurate and stable dispensing regardless of changes in the temperature of the liquid.
Specifications
| name | Volumetric Metering Valve PPV-5 |
| Model | PPV-5-2P-SUS |
| Applicable Viscosity | ~30 Pa • s |
| Operating air supply pressure range | 0.05 to 0.5 MPa |
| Maximum liquid material supply pressure | 0.33MPa |
| Liquid material supply port | Rc1/8 |
