Musashi Engineering

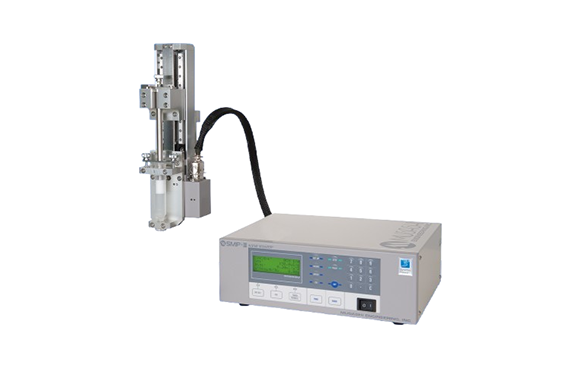

Musashi SMP-3 Micro-quantity dispenser NANO MASTER
Manufacturer: Musashi Engineering, Inc.
Model: SMP-3
Features
– Effective for ultra-small amount dispensing, precise dispensing, and fixed-volume filling of solvents and volatile materials.
– Ultra-small amount dispensing of low-viscosity liquids, down to 1/1,000,000 mL.
– Highly stable dispensing achieved through digital control and metering method.
– Unique plunger mechanism and suck-back function eliminate dripping.
– Enables continuous micro-volume dispensing.
– Enables micro-volume dispensing, precise dispensing, and fixed-volume filling of low-viscosity liquid materials. –
Direct numerical input of dispensing volume, achieving excellent operability and high reproducibility.
– Equipped with a remaining amount detection function.
– Centralized control by host computer possible.
– Can be equipped with a microsyringe. (Option: SMP3-MS)
Specifications
| name | Micro-quantity dispenser NANO MASTER SMP-3 |
|---|---|
| Model | SMP-3-30 / SMP-3-50 |
| Dispensing Mode | Timed mode/Manual mode Fine mode/Normal mode |
| Applicable syringe | Microsyringe: 0.05, 0.5, 1, 5, 10 mL Syringes: 5, 10, 20, 30, 50 mL |
| Key Features | Automatic remaining amount warning, suck stopwatch, unit display switching, synchronized speed, discharge counter, Japanese-English display switching |
| Number of Channels | 400CH |
