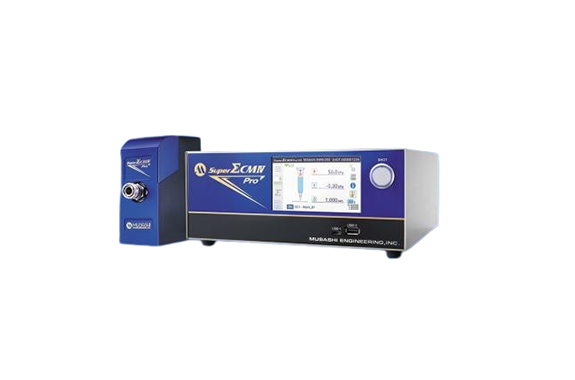

Musashi SuperΣCMⅣ Pro Fully digitally controlled dispenser

Manufacturer: Musashi Engineering, Inc.
Model: SuperΣCMⅣ Pro

Features

■The independent AIR OUT unit maintains the highest dispensing response and accuracy even in long piping environments!
■Equipped with a temperature control controller. It can both heat and cool the syringe, making it possible to suppress fluctuations in the amount of application caused by rising liquid temperature.

Specifications

Fully digitally controlled dispenser SuperΣCMIV Pro
Model	S-SIGMA-CM4P-CTR-V7-N	S-SIGMA-CM4P-CTR-V7-P	S-SIGMA-CM4P-CTR-V2-N	S-SIGMA-CM4P-CTR-V2-P	S-SIGMA-CM4P-CTR-V05-N	S-SIGMA-CM4P-CTR-V05-P
Discharge pressure setting range Σ function ON	30.0 to 700.0 [kPa]	20.0 to 200.0 [kPa]	5.0 to 50.0 [kPa]
Discharge pressure setting range Σ function OFF	20.0 to 700.0 [kPa]	5.0 to 200.0 [kPa]	0.5 to 50.0 [kPa]
Discharge time setting range Σ function ON	Timed mode: 0.020 to 9999.999 [s] Manual mode: 0.035 to 9999.999 [s]	Timed mode: 0.020 to 9999.999 [s] Manual mode: 0.035 to 9999.999 [s]	Timed mode: 0.020 to 9999.999 [s] Manual mode: 0.035 to 9999.999 [s]	Timed mode: 0.020 to 9999.999 [s] Manual mode: 0.035 to 9999.999 [s]
Discharge time setting range Σ function OFF	0.001 to 9999.999 [s]	0.001 to 9999.999 [s]	0.001 to 9999.999 [s]	0.001 to 9999.999 [s]
Dispensing Mode	Timed mode, manual mode	Timed mode, manual mode	Timed mode, manual mode	Timed mode, manual mode
Vacuum pressure setting range	0.00 to -5.00 [kPa]	0.00 to -5.00 [kPa]	0.00 to -5.00 [kPa]	0.00 to -5.00 [kPa]
Key Features	Automatic head difference correction, automatic drip prevention, automatic remaining amount warning, alpha correction, delta correction, remaining amount display correction, vacuum pressure correction, discharge counter, stopwatch, interval discharge, discharge condition correction, auto increment, auto slope, express shot, date and time, operation history, discharge pressure monitoring, self-diagnosis, ECO mode (*), sleep mode, I/O function allocation, password lock, display unit switching (kPa/bar), solenoid valve alarm, solenoid valve error, supply air pressure error, exhaust error, vacuum pressure error, channel copy, parameter backup, auto-tuning
Signal Specifications	NPN	PNP	NPN	PNP	NPN	PNP
Number of Channels	400CH
