Musashi Engineering

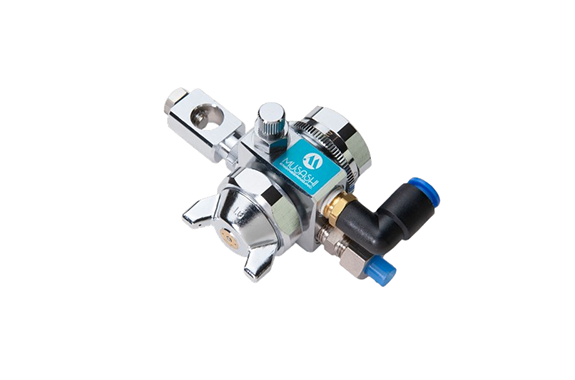

Musashi SV-6 2-Fluid Spray Valve
Manufacturer: Musashi Engineering, Inc.
Model: SV-6
Features
・Uniform film thickness with dedicated nozzle.
・Low pressure atomization prevents scattering.
・Multi-head compatible.
・A wide range of system lineup
Specifications
| name | 2-fluid spray valve SV-6 | |||
| Model | SV-6 | SV-6SK | SV-6R | SV-6RW |
| Operating air supply pressure range | 0.2 to 0.5 MPa | |||
| Atomization air supply pressure range | ~0.5MPa | |||
| Maximum liquid material supply pressure | 0.2 MPa | |||
| Operating air supply port | Rp1/8 | |||
| Atomizing air supply port | Rp1/8 | |||
| Liquid material supply port | Rp1/8 |
