Musashi Engineering

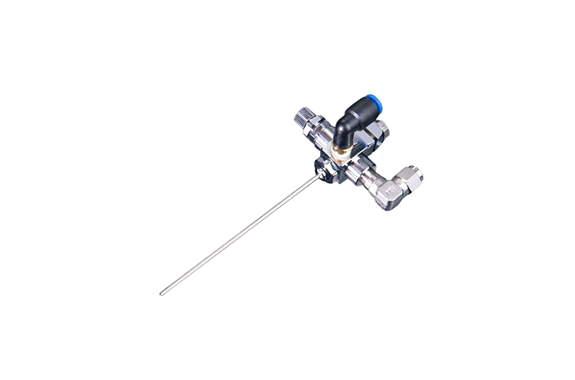

Musashi SVM-6LX Two-Fluid Spray Valve
Manufacturer: Musashi Engineering, Inc.
Model: SVM-6LX
Features
・Coating of the inner surface of the cylinder with a needle nozzle.
・Prevents scattering with low-pressure atomization.
・Small and lightweight, allowing use in tight spaces.
Specifications
| name | Two-fluid spray valve SVM-6LX |
| Model | SVM-6LX |
| Operating air supply pressure range | 0.2 to 0.5 MPa |
| Atomization air supply pressure range | ~0.5MPa |
| Maximum liquid material supply pressure | 0.2 MPa |
| Operating air supply port | Rc1/8 |
| Atomizing air supply port | Rc1/8 |
| Liquid material supply port | Rp1/8 |
