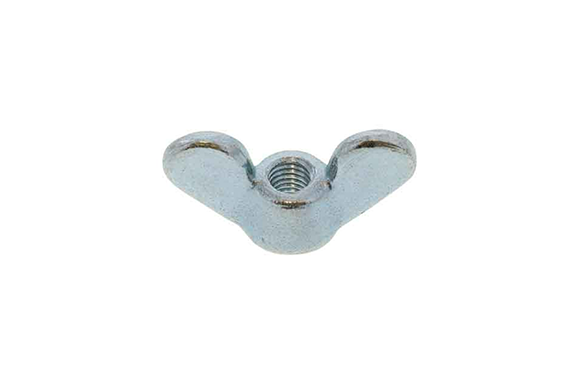

N0-0160 Wing Nut (Type 1)
Model: N0-0160
Iron (or standard), brass, Stainless steel (303, 304,…), Titanium (Ti), SUS316L.
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…
Iron・SUS
| Thread Nominal Diameter | A | B | ※C | D | ※H | Q1 | G2 | ||
|---|---|---|---|---|---|---|---|---|---|
| Minimum | Approx. | Minimum | Standard Dimension | Tolerance | Standard Dimension | Tolerance | Maximum | Maximum | |
| M 4 | 8.5 | 7 | 7 | 25 | ± 1.5 | 12 | ± 1.5 | 3.5 | 4.5 |
| M5 | 8.5 | 7 | 7 | 25 | 12 | 3.5 | 4.5 | ||
| M6 | 10.5 | 9 | 11 | 32 | ± 2.0 | 18 | 4 | 5 | |
| M8 | 14 | 12 | 11 | 40 | 21 | 4.5 | 5.5 | ||
| M10 | 18 | 15 | 15 | 50 | 26 | 5.5 | 6.5 | ||
| M12 | 22 | 18 | 16 | 60 | 29 | 7 | 8 | ||
| M14 | 26 | 22 | 17 | 70 | 34 | ± 2.0 | 8 | 9 | |
| M16 | 26 | 22 | 17 | 70 | 34 | 8 | 9 | ||
| M18 | 34 | 28 | 23 | 90 | ±2.5 | 46 | 9 | 11 | |
| M20 | 34 | 28 | 23 | 90 | 46 | 9 | 11 | ||
| M22 | 34 | 28 | 23 | 90 | 46 | 9 | 11 | ||
| M24 | 43 | 36 | 23 | 112 | 56 | 11 | 13 | ||
※C and ※H dimensions are manufacturer-specific original standards.
Brass
| Thread Nominal Diameter | A | B | C | D | H | G1 | G2 |
|---|---|---|---|---|---|---|---|
| M4 | 7 | 6 | 4 | 20 | 10 | 3 | 4 |
| M5 | 8.5 | 7 | 5 | 25 | 12 | 3.5 | 4.5 |
| M6 | 11.4 | 9.5 | 7.6 | 31.8 | 15.2 | 2.3 | 3.6 |
| M8 | 14.8 | 11 | 10 | 39.3 | 19.9 | 3.5 | 4.9 |
| M10 | 18.3 | 14 | 11.5 | 49 | 24.5 | 3.7 | 5 |
| M12 | 23.8 | 18 | 13.4 | 60.2 | 30.4 | 5.5 | 6.8 |
