Nachi AQUA Drill EX FLAT Regular / Long Shank
Manufacturer: NACHI

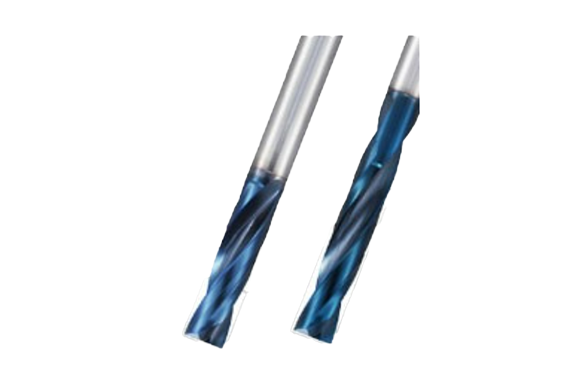

Product name: AQUA Drill EX FLAT Regular / Long Shank
Features

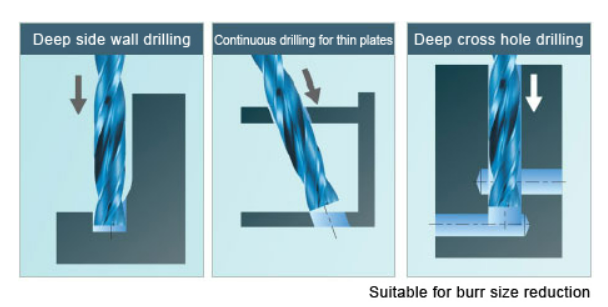

Suitable for drilling on inclined surface at deep at hole position

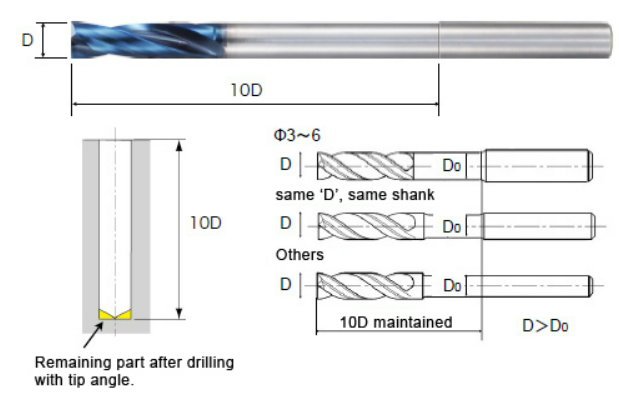

AQUA Drills EX FLAT Long Shank

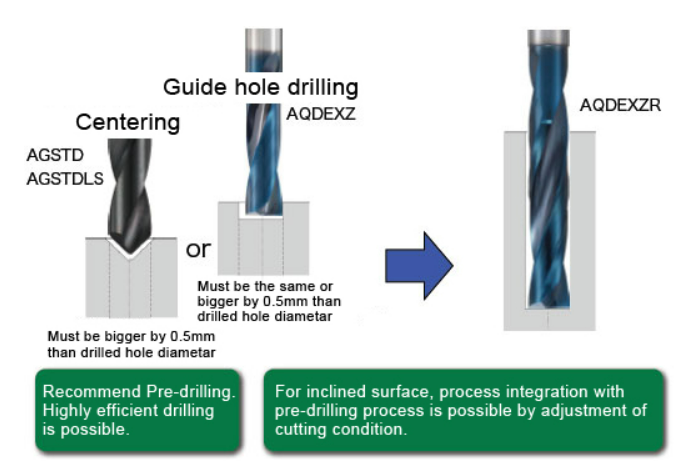

Deep hole drilling with AQUA FLAT Series : Regular

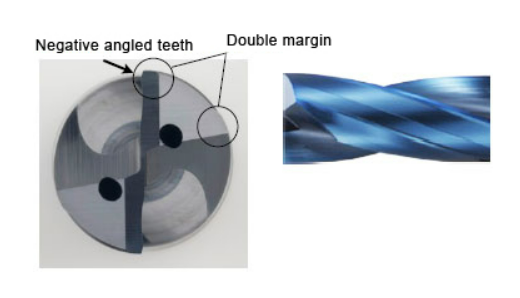

Reduction of hole enlargement
Amount of oversize is reduced due to a double margin and the shape of the negative rake blade tip.

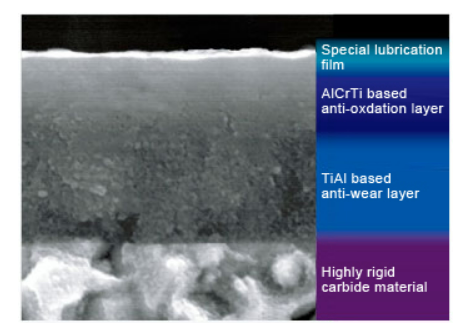

AQUA EX Coating
Improved resistance to oxidation. heat and wear

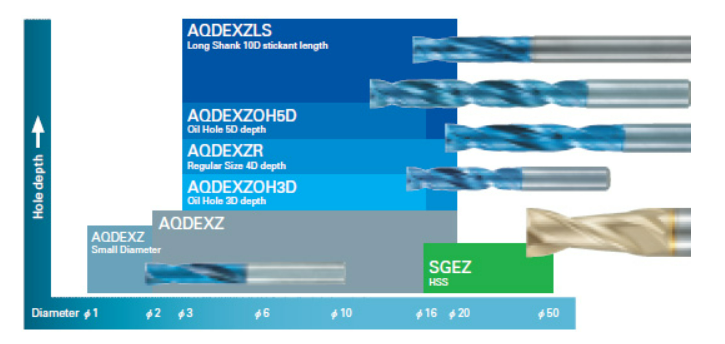

AQUA Drill EX Flat lineup
Performance

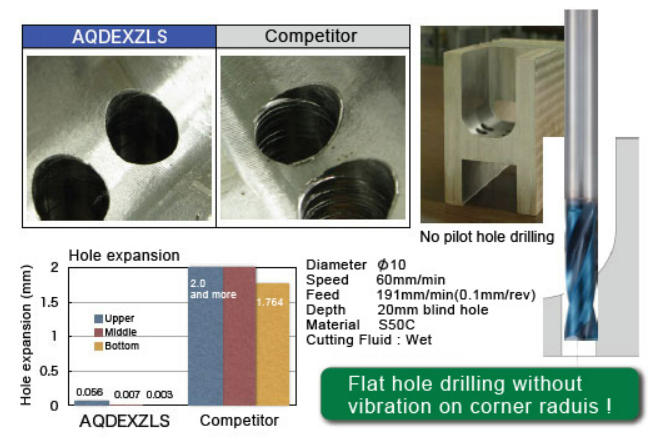

Flat-bottom hole drilling on curved surface in a deep work position
Flat-bottom hole drilling on curved surface : Long Shank

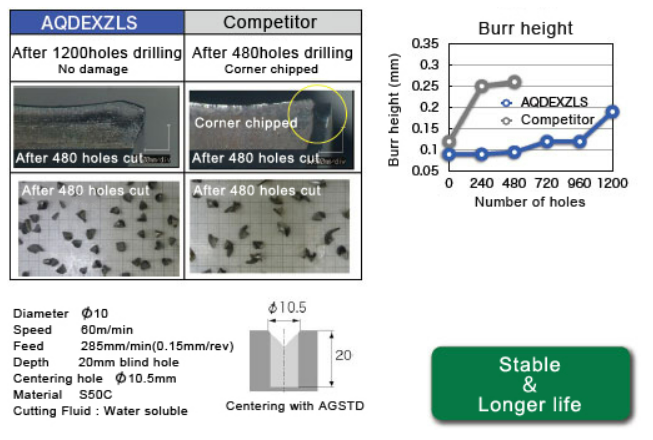

Tool life comparison of carbon steels : Long Shank
Flat-bottom hole drilling on inclined surface of 30 degrees with depth 4D

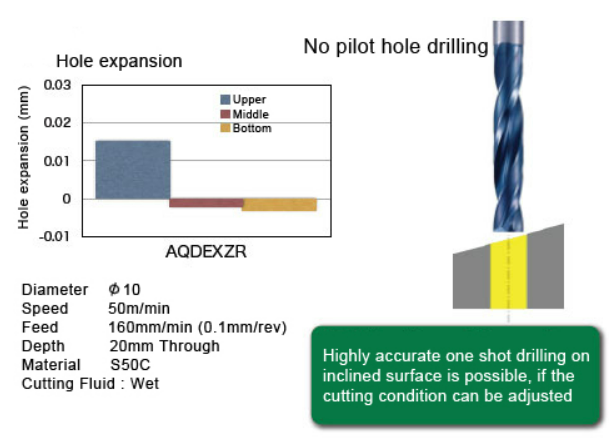

Flat-bottom hole drilling on inclined surface of 15 degrees
