Nachi
Nachi CBN Mold Finish Master

Manufacturer: Nachi-fujikoshi corp
Model: CBN
Features and Performance

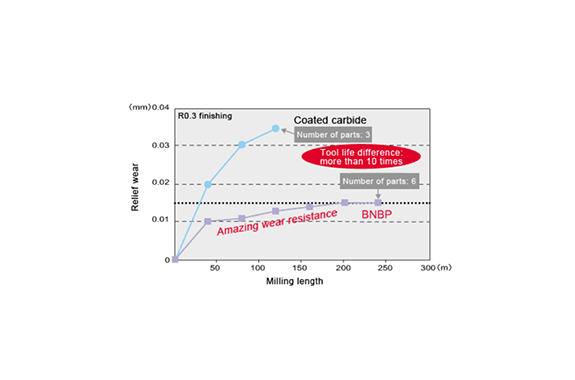

Relief wear changes R0.3 finishing

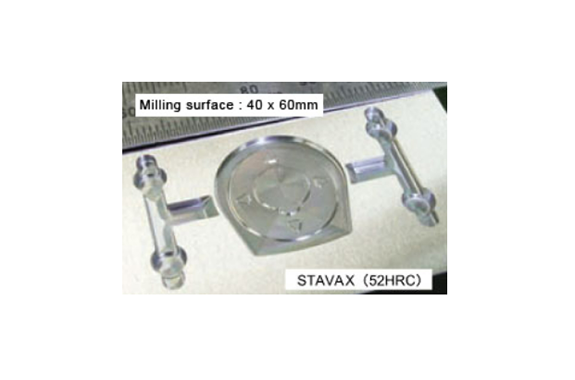

Milling sample shapes and cutting conditions
Processing | Cutting Tool | Rotation (min⁻¹) | Feed (mm/min) | ap (mm) | Pf (mm) |
---|---|---|---|---|---|
1 | R1.0 | 25,000 | 1,500 | 0.1 | 0.2 |
2 | R0.5 | 25,000 | 1,000 | 0.05 | 0.1 |
3 | R0.3 | 36,000 | 500 | 0.03 | 0.02 |

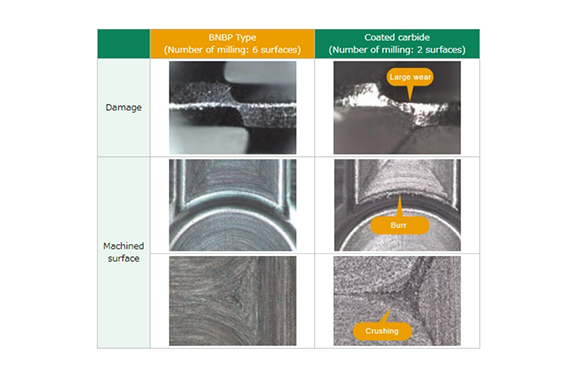

Tools damage and milling surface quality R0.3 finishing
