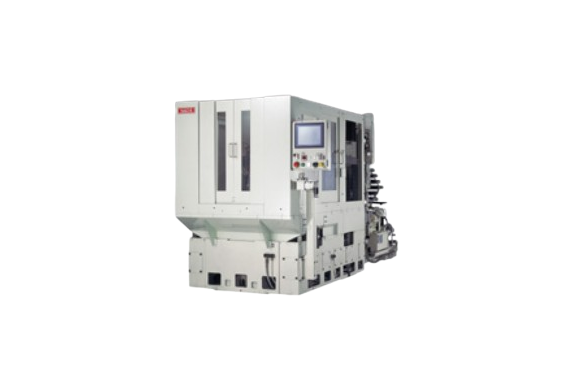

Nachi DH524 Compact Inline Center
Manufacturer: Nachi-fujikoshi corp
Model: DH524
Outline
Capable of MQL machining Non-pecking deep boring is enabled by MQL machining. with the result that machining efficiency has been improved five times.
Space saving The required machine space has been reduced to 40 percent. (as compared to our conventional product).
Energy saving Power consumption by the machine has been reduced to 60 percent. (as compared to our conventional product).
Specifications
| Travel | Stroke (X × Y × Z) | 500mm × 200mm × 460mm |
| Rapid federate (X × Y × Z) | 48 × 48 × 48m/min | |
| Acceleration (X × Y × Z) | 0.46G × 0.42G × 0.82G | |
| Spindle | Spindle taper | KM6350 |
| Spindle speed max. | to 8000rpm | |
| Spindle motor | 5.5/3.7kW AC Spindle motor | |
| ATC | Number of stored tools | 12 |
| Magazine | Movable magazine type | |
| Tool selection method | Fixed address | |
| Maximum tool diameter | Ø 90mm | |
| Maximum tool length | 240mm | |
| Maximum tool weight | 3kg | |
| Machine dimensions | Width by depth | 1,200mm × 3,250mm |
| Height | 2,000mm |

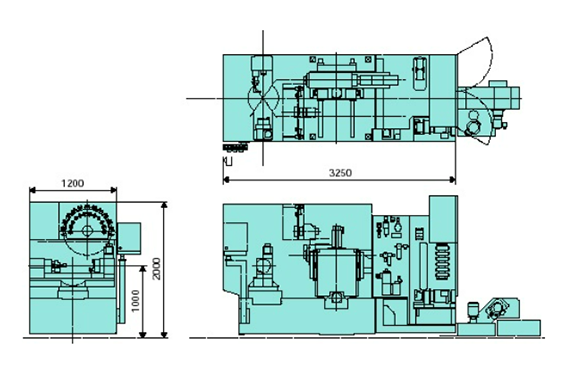

Machine dimensions (Unit : mm)
