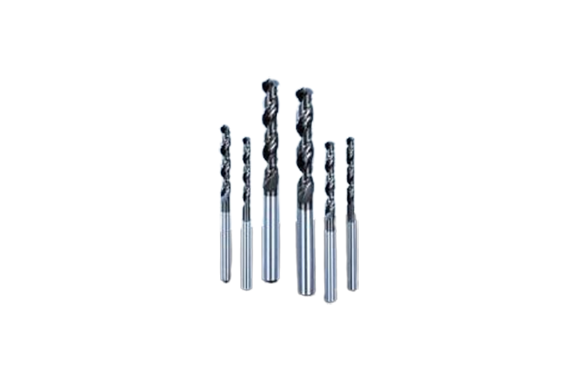

Dry drilling of Aluminum
DLC (Diamond Like Carbon) is an amorphous material with high hardness and low friction rate. and has similar character of Diamond. Application for drilling & milling in Aluminum Ultra high speed cutting in DRY !
Excellent chip evacuation
Trouble free drilling by unique flute geometry Stable & extra long tool life is realized by DLC film & its unique flute.

Features and Performance

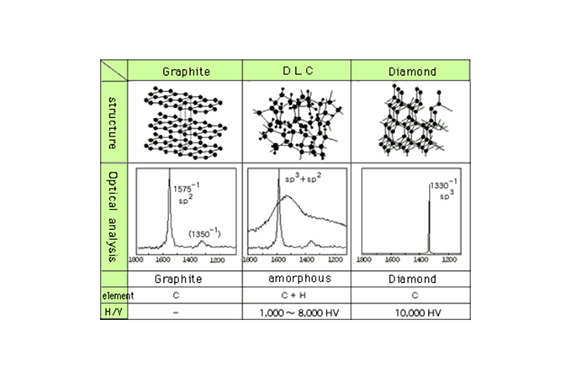

Construction of DLC
Thanks for newly developed DLC film having no built-up edge

BALL: SUJ2
Disk: Film/HSS (Ry 0.2 µm)
Revolution: 500 min⁻¹
Overweight: 100 N (dry condition)
Machine: CSEM Tribometer

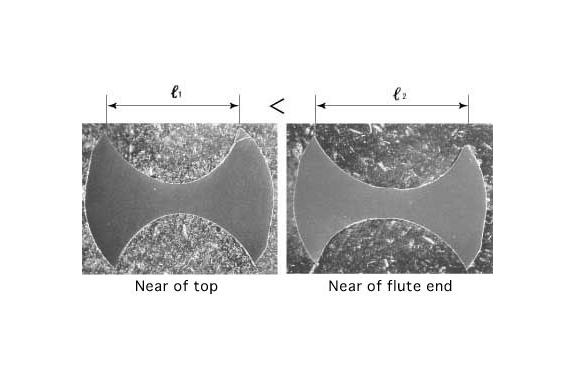

Adoption the flute which spread gradually (Pat.P)

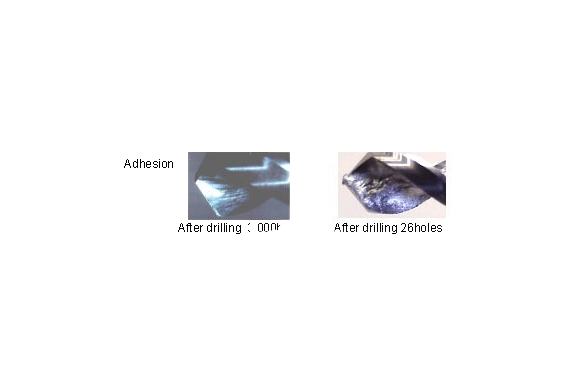

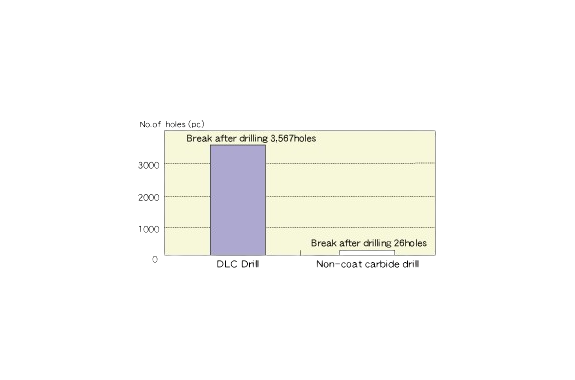

Performance of Dry Drilling
Conditions
Drill : 5.5mm
Speed : 100m/min
Feed : 0.08mm/rev
Depth : 16.5mm Blind
Material : ADC12
Coolant : DRY

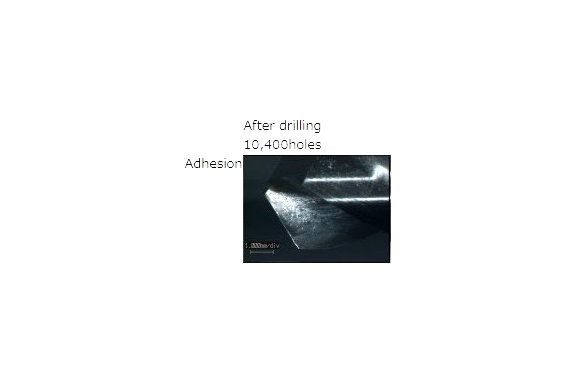

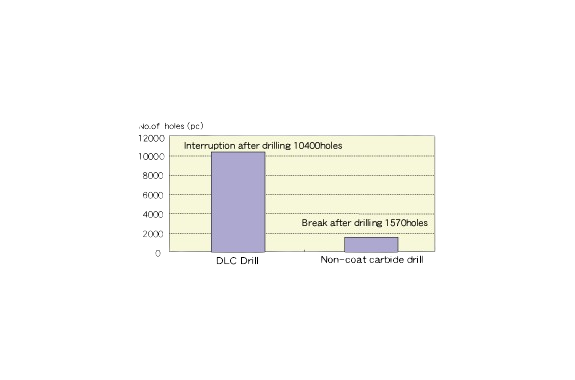

Performance of Wet Drilling
Conditions
Drill : 5.5mm
Speed : 100m/min
Feed : 0.08mm/rev
Depth : 27.5mm
Blind Material : AlMg2.5 A5052
Coolant : Emulsion
