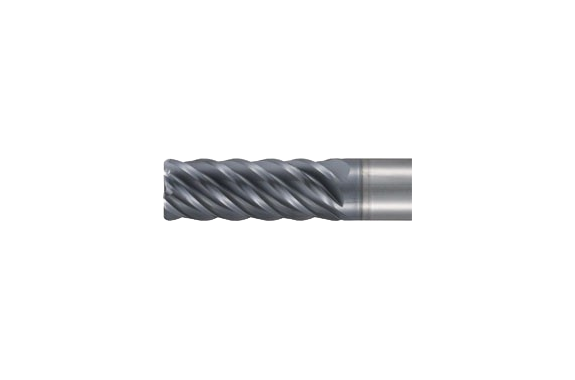

Manufacturer:  Nachi-fujikoshi corp
Model: GSX MILL VL

Outline

Unequal tooth spacing and variable leads that suppress chattering using six blades
High-speed milling is realized for raw materials. titanium alloy and heat-resistant alloy.
GSX II coating with superior heat. wear and adhesion resistance to achieve long tool life.
Additional release of the radius model.
For titanium alloy and SUS and for steels
There are two types. for steels and for titanium alloy and SUS that support almost any work materials.
GSX II coating
With the multi-layer of heat resistance coating and hard coating. GSX MILL VL supports cutting of hardened materials. With high wear resistance and anti-adhesion properties. stable chip removal is realized for a wide range of work materials.

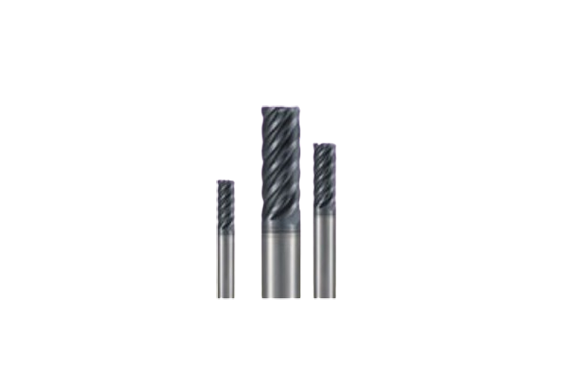

Additional release of the radius model
There are two types. for steels and for titanium alloy and SUS that support almost any work materials.

Features

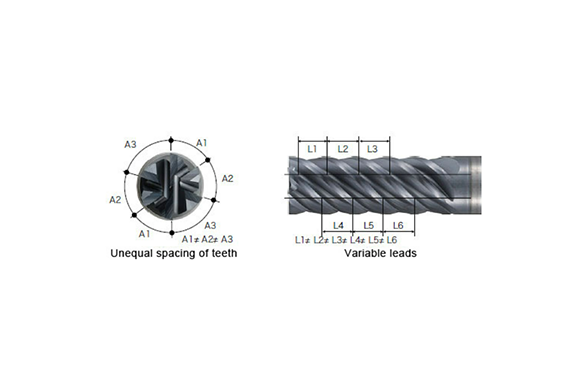

Unequal spacing of teeth
Variable leads
Reduce vibration and realize high quality milling by adapting unequal index and lead design.

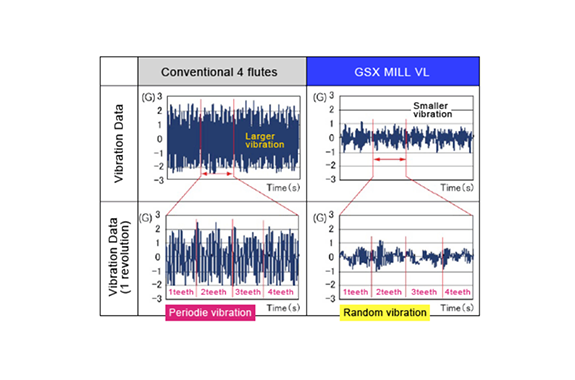

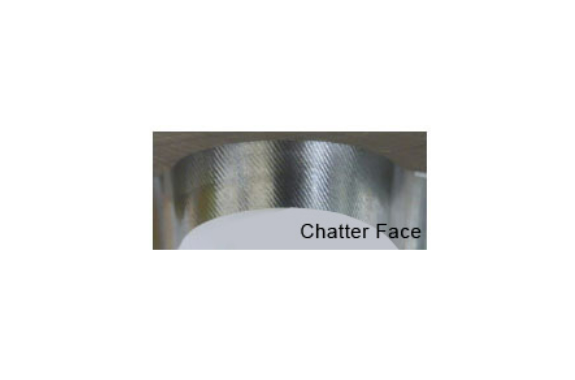

Comparison of vibration
Applicable to wide range of materials by two series

	For Steel	For Ti and Stainless
Applicable materials	Carbon Steels Pre-Hardened Steels Alloy Steels Die Steels	Stainless Steels Titanium Alloys Inconel718, etc

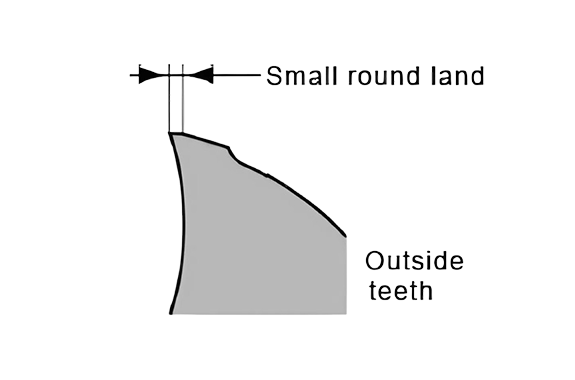

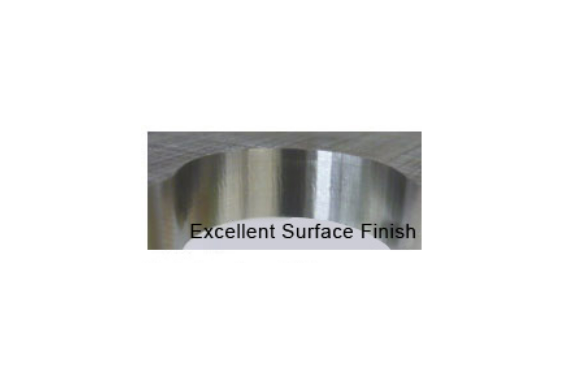

Feature	Apply specially designed cutting edge to get good surface finish Better surface finish	Apply suitable carbide material for difficult-to-machine material Higher helix angle for better removability

GSX-II Coating
Excellent heat resistance
Achieve high heat Resistance with Al-rich composition.

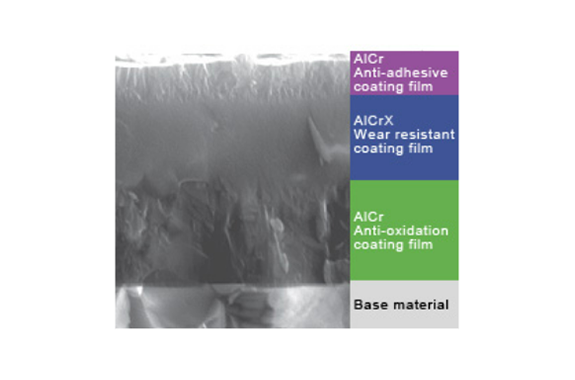

Multi layer structure
High hardness of coating in according to multi layer structure with AlCr and AlCrX.
Crystal structure
Great wear and resistance with optimum crystal structure.

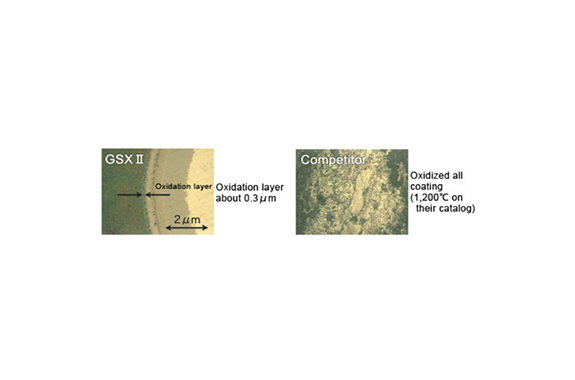

Evaluation of oxidation resistance
Status of coating films after keeping with 1.100°C in the air after 1 hour
