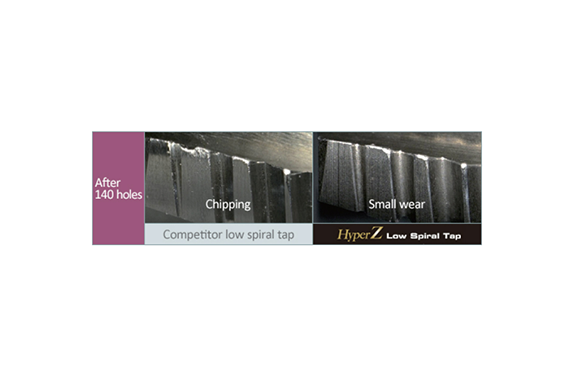

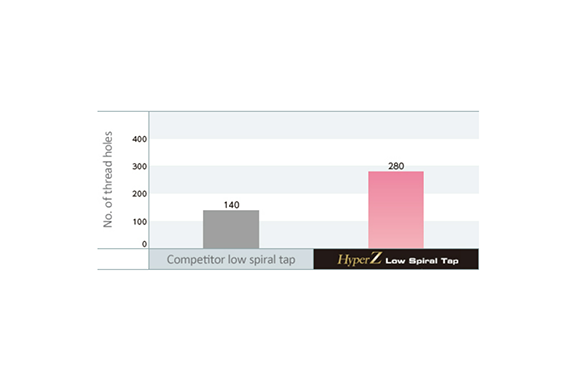

Cutting Conditions
Size: M6 × 1
Cutting Speed: 5 m/min
Machine: Horizontal machining center / Synchro tapper
Work Material: SCM440H (44 HRC)
Depth (blind hole): 7 mm
Lubricant: Tap paste
Nachi

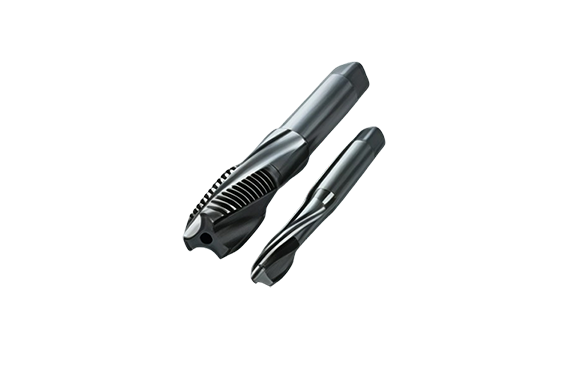

Nachi Hyper Z Low Spiral Tap

Manufacturer: Nachi-fujikoshi corp
Model: Hyper Z Low
Features and Performance
Outstanding chip evacuation regardless of processing machine
By adopting a low spiral flute shape and optimizing the helix angle. the strength of the cutting edge is improved. and chips are finely divided. Stable machining is achieved even in horizontal machining centers which chip clogging and entanglement problems are likely to occur.

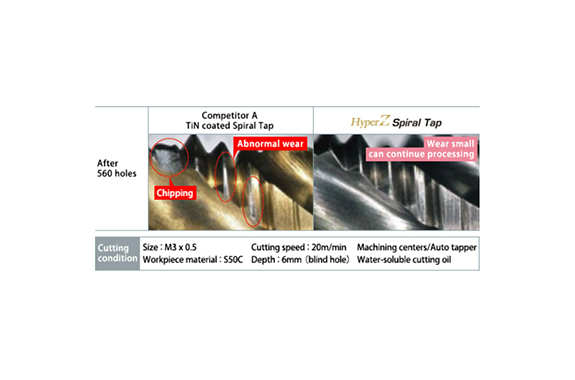

Long tool life even which machining high hardness steel
Our uniquely developed material with both hardness and toughness. and special surface treatment suppress blade chipping and wear even with hard high-hardness steel and ductile cast iron.
