Nachi

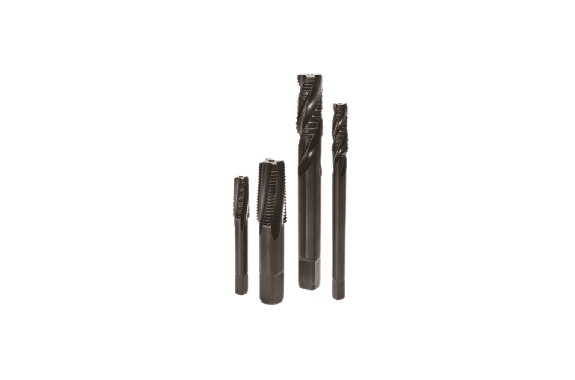

Nachi Hyper Z TAP For Taper Pipe Threads

Manufacturer: Nachi-fujikoshi corp
Model: Hyper Z TAP
Features
Chip winding and torque suppressed
Control wear
Performace

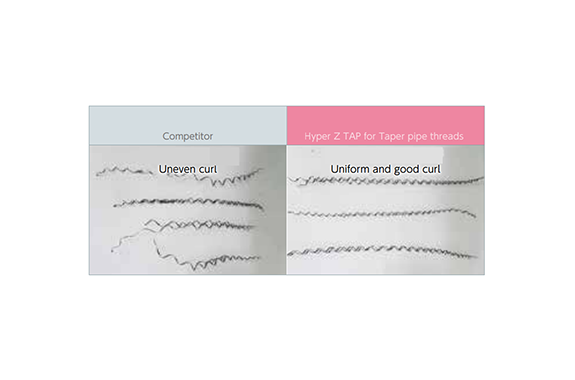

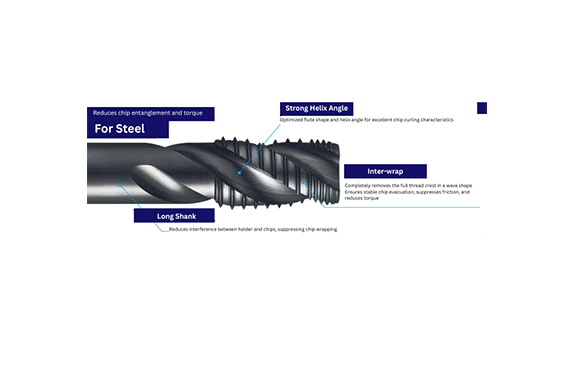

Suppresses winding of chips
Uniform chip curl suppresses chip winding

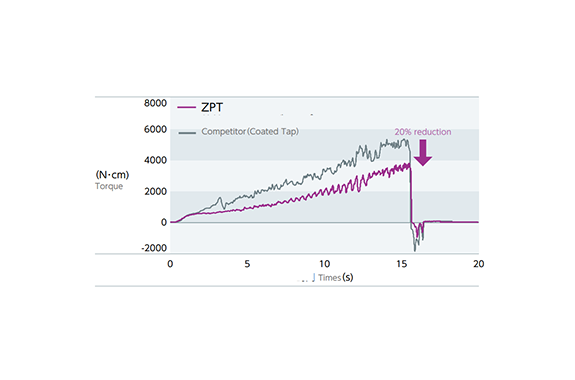

Low torque
Reduction of torque even for steel-based work materials where cutting resistance increases

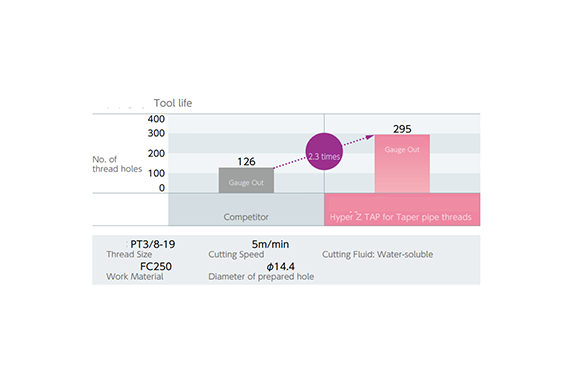

Long tool life
Chips are hard to get caught. long life by suppressing blade chipping

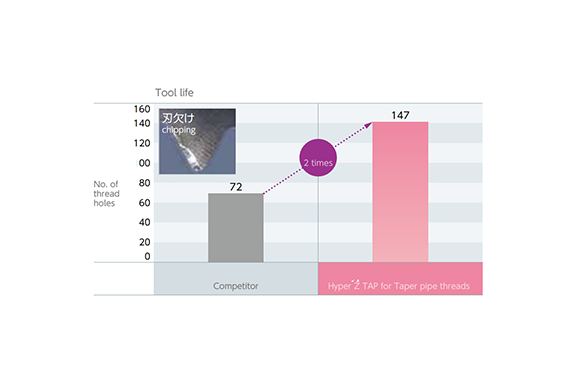

for Cast Iron / Cutting of Cast Iron (FC250)
Long tool life

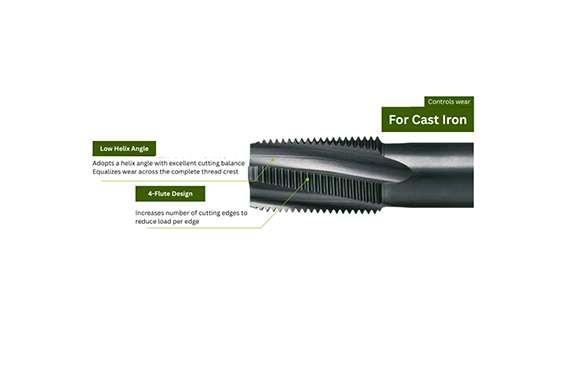

Tool runout was suppressed by the optimization of the twist angle Long tool life with uniform distribution of wear on cutting edges
