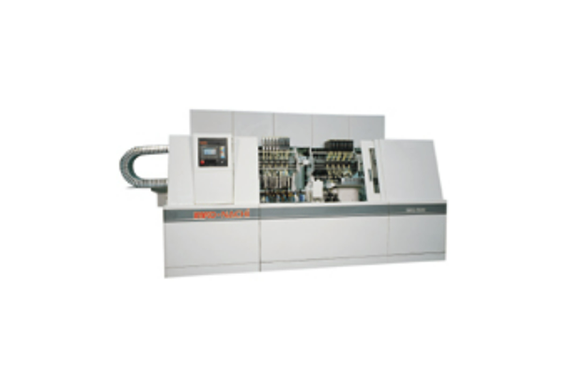

Nachi LF 740/1500/1800 Power Finisher
Manufacturer: Nachi-fujikoshi corp
Model: LF 740/1500/1800
Outline
General purpose machine for crank shaft and cam shaft
Mass production machine configurable in one. two or three stations
Features
Machining system
Machining Example
Specification
| LF-740 Transfer type (cam) | LF-1500 (cam, crank) | LF-1800 Transfer type (crank) | |
|---|---|---|---|
| Max. workpiece length (mm) | 600 | 700 | 700 |
| Max. swing (mm) | – | 240 | 240 |
| Workpiece dia. (mm) | 20 to 40 | 20 to 72 | 30 to 72 |
| Polishing width (mm) | 30 | MAX50 | MAX50 |
| Max. stroke (Eccentricity) (mm) | – | MAX60 | MAX60 |
