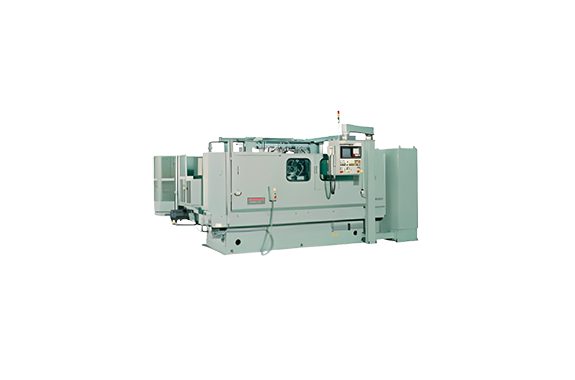

Nachi LF-900NC Power Finisher
Manufacturer: Nachi-fujikoshi corp
Model: LF-900NC
Outline
Roundness is improved by solid back-up stone
Size control by in-process and post process gauging system
Combination of different grit film generates high grade bearing surface
Features
Machining system
Machining Example
Specification
| LF-900NC | |
|---|---|
| Max. workpiece length (mm) | 900 |
| Max. swing (mm) | 250 |
| Workpiece dia. (mm) | 20 to 100 |
| Polishing width (mm) | 15 to 50 |
| Max. stroke (Eccentricity) (mm) | 120 |
