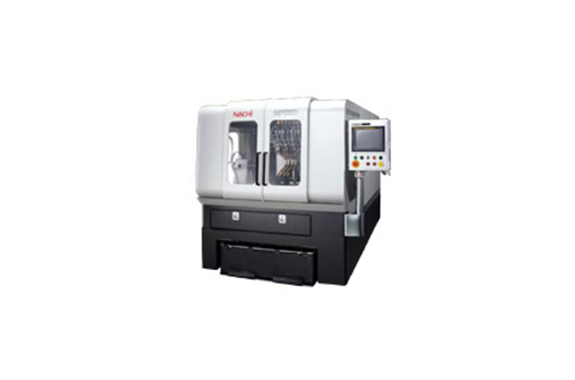

Nachi MF650 Power Finisher

Manufacturer: Nachi-fujikoshi corp
Model: MF650

Outline

Machining System for High Precision Surface Finishing of Crankshaft Bearings
Space saving
Energy saving
Improved maintainability
Improved Productivity
Flexibility
Flexible and speedy response to multi-product mixed production
Automatic switching of film processing interval (pitch)
Cassettes are used for the processing tooling section equipped with the film. allowing for quick tooling replacement according to the work

Features

Machining system

Specification

Main specifications

Work piece (crankshafts)
Length350 to 650
Diameter (mm)Max. Ø95
1/2 stroke (mm)Max. 51.5
Width (mm)15 to 50
Supported pitch (mm)31 to 51.5
Arm unit
Number of armsMax. 11
Machine dimensions
Width by depth1,500 × 3,175
Height (mm)1,600

Units:mm
