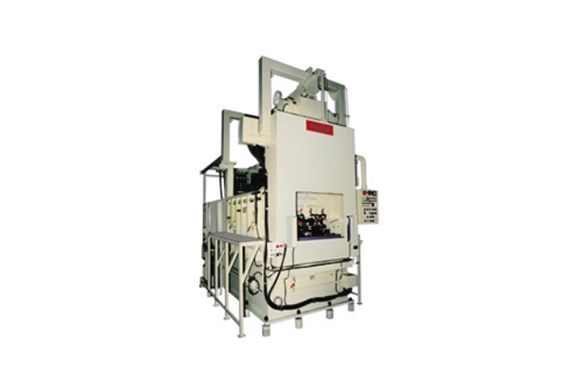

Nachi NSL-T Series Horizontal Workpiece Transfer Type Surface Broaching Machines
Manufacturer: Nachi-fujikoshi corp
Model:NSL-T Series
Features
Tunnel shape workpiece transfer surface processing machine
Easily adopted into production line due to pitless type
Minimized tool exchange time by broach inverter

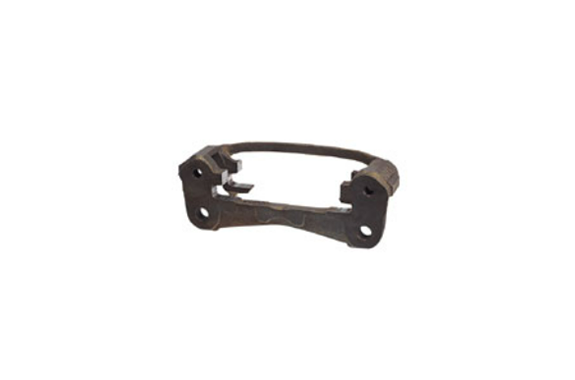

Machining Example
Specification
| NSL-T5-16 | NSL-T10-20 | NSL-T20-23 | |
|---|---|---|---|
| Pulling force (KN) | 50 | 100 | 200 |
| Max. stroke (mm) | 1,600 | 2,000 | 2,300 |
| Cutting speed (m/min, 60Hz) | 1 to 14 | 1 to 15 | 1 to 14 |
| Return speed (m/min, 60Hz) | 16.5 | 28 | 20 |
| Table (mm) | 800 × 1,200 | 800 × 1,200 | 800 × 1,200 |
| Main motor (kW) | 15 | 30 | 30 |
| Machine height (mm) | 4,250 | 4,200 | 4,200 |
| Floor space (mm × mm) | 3,150 × 5,800 | 3,800 × 5,400 | 4,100 × 5,600 |
| Mass of Machine (kg) | 16,500 | 18,000 | 20,000 |
