Japan, Nachi
Nachi NSP Series Compact Hydraulic Unit
Made in: Japan
Manufacturer: NACHI
Model: NSP Series
Features
High-efficiency hydraulic unit provides significant savings for machine tools
- High-efficiency hydraulic unit provides significant savings for machine tools
- Energy-saving unit requires no inverter Saves energy in all running modes
- Low heating and low pulsation for high-accuracy machines
- Highly reliable simple structure for easy operation and maintenance
- Approximately 40% less energy consumption than standard unit

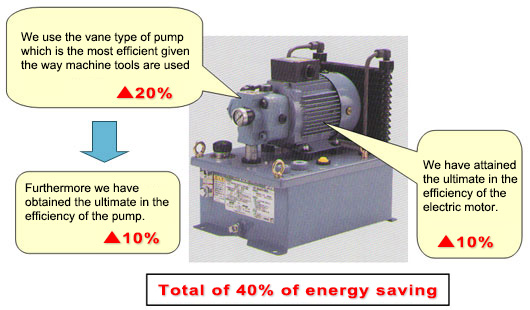

Energy-saving design in pursuit of efficiency
Perfomance

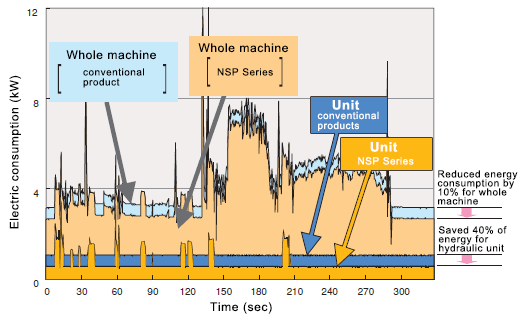

Actual example of energy saving using a NC lathe
Specifications
| Type | NSP-*-*V*A* | |
|---|---|---|
| Pump capacity (cm3/rev) | 8.0 | 16.0 |
| Maximum set pressure (MPa) | 8.0 (Full cutoff pressure) | |
| Motor output (kW) | 0.75, 1.5 | 1.5, 2.2 |
| Tank capacity (Lit.) | 10, 20 | |
| Installation space (mm) | 300 x 400 | |
| Approximate dry weight (kg) | 39 (10L tank, 1.5kW, Without options) | |
