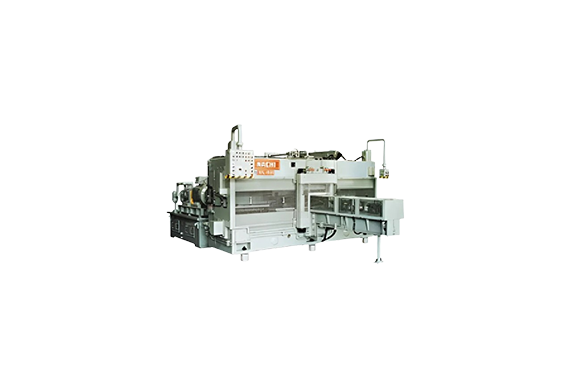

Nachi PFL Series Horizontal Precision Roll Forming Machines
Manufacturer: Nachi-fujikoshi corp
Model: PFL Series
Features
Cutting accuracy is stabilized even with high load rolling
Horizontal. rigid machine for high efficiency

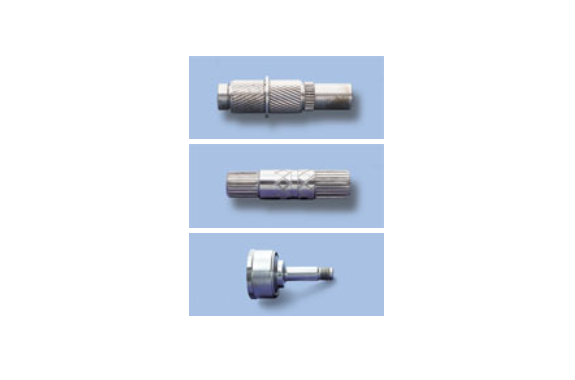

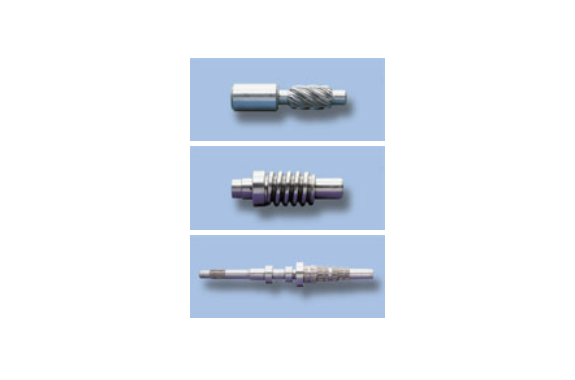

Machining Example
Specification
| PFL-1220B | |
|---|---|
| Max. rolling dia. (mm) | 50 |
| Max. rack holder width (mm) | 125 |
| Max. rolling module | m1.75 |
| Max. rack length (mm) | 1,252 |
| Max. rack stroke (mm) | 1,600 |
| Main motor (kW) | 30 |
| Opening section distance (mm) | 152.4 |
| Floor space (mm × mm) | 4,000 × 3,700 |
| Mass of Machine (kg) | 18,000 |
