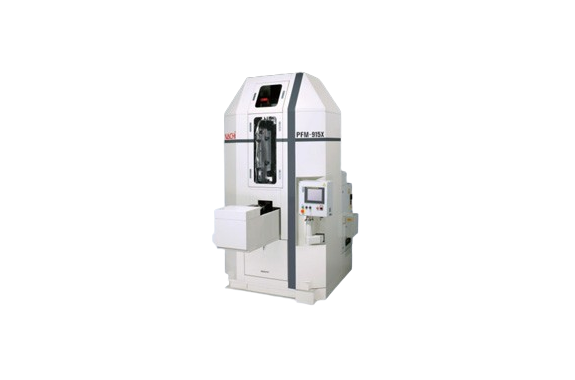

Nachi PFM-X Series Precision Roll Forming Machine

Manufacturer: Nachi-fujikoshi corp
Model: PFM-X Series

Features

Environment friendly semi-dry roll forming
The electric power drive and semi-dry rolling reduce power consumption.
High precision roll forming through NC synchronization
Change-out procedure is easy
High precision roll forming through NC synchronization
Two server motors move rack left and right with high precision NC synchronization (Direct ball screw coupling in a backlash-less construction)
The system uses CIM to numerically control the position adjustment.
Change-out procedure is easy
The operator can move the rack into position for easy change-out. The stroke extends to 200 mm during this process.
The operator can adjust the OPD dimensions without loosening the rack.

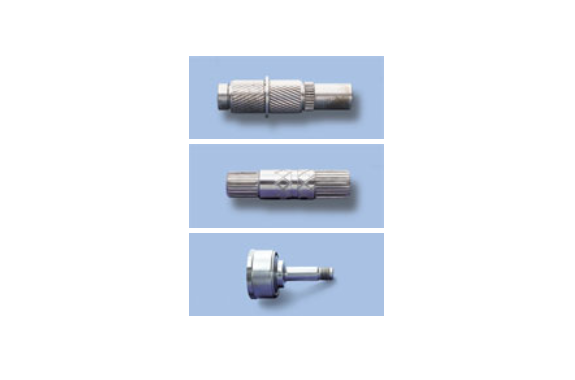

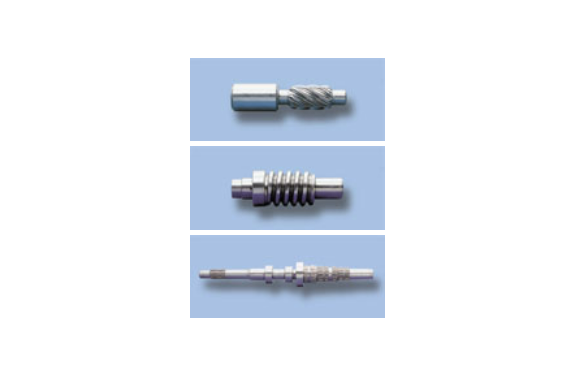

Machining Example

Specification

PFM-915X
Max. rolling dia. (mm)	40
Max. rack holder width (mm)	145 (250)
Max. rolling module	1.3
Max. rack length (mm)	1,017
Rolling stroke (mm)	1,150
Maximum stroke (rack change-out) (mm)	1,350
Max. rolling speed (m/min)	25
Opening section distance (mm)	139.7
Work height (mm)	1,400
Width × depth (machine base) (mm)	1,560 × 1,250
Height of machine (mm)	3,200

Standard accessories
Lubrication unit
Electric Control equipment
Tool kit
Special accessories
For work location Work center Work temporally locator Work carrying out device Work turn over device Auto loading /unloading system Work piece distinguisher
For mist coolant Mist coolant device Mist collector

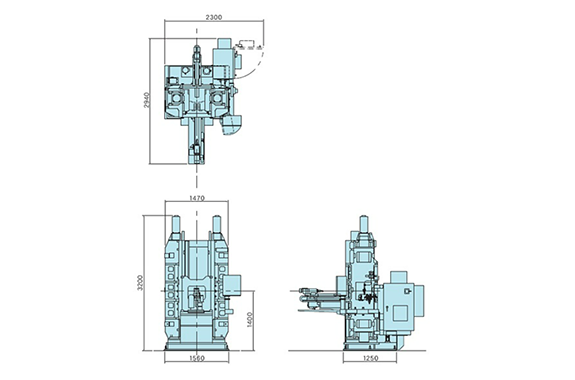

Machine dimensions (Units:mm)
