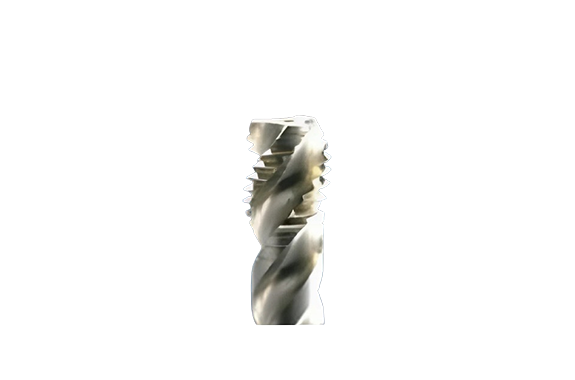

Nachi SG Spiral Taps
Manufacturer: Nachi-fujikoshi corp
Model: SG Spiral
Features
It is hard to be broken by high rigidity flute shape design

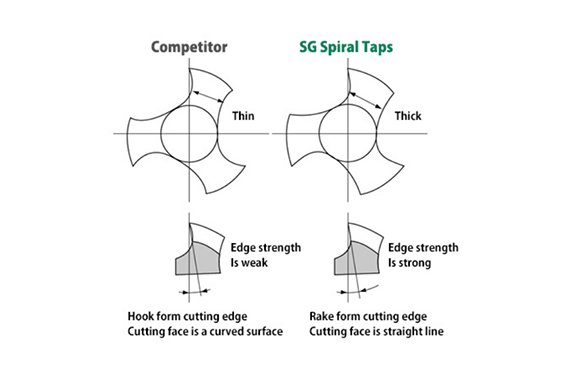

Sectional shape

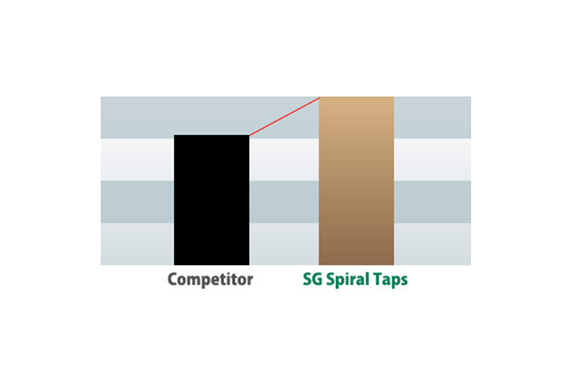

Comparison of the breaking torsion torque
The breaking torque of SGSP is 30% bigger than competitor. SGSP hardly breaks
SG Spiral Taps have wide width of land. and large cross section. Rigidity of stress concentration part is high. the breaking torque is big. so hardly breaks.

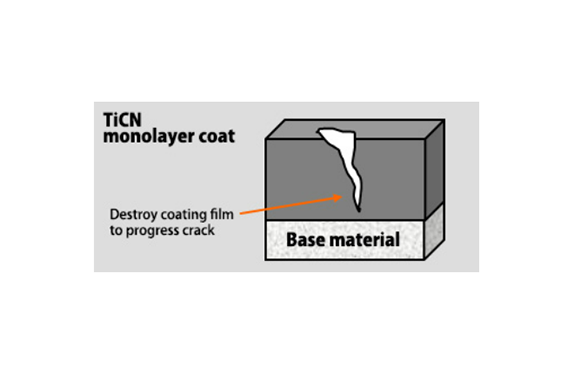

Cross section structure of SG coating

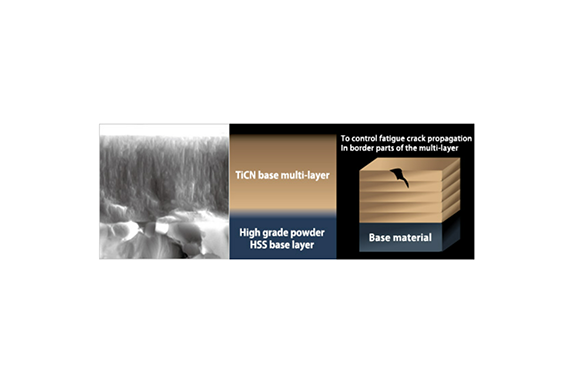

SG coating is dense quality film for specific use of tap Improve wear resistance and toughness by using fine multilayer film
Performance
No matter what cutting speeds. stable cutting screw threads and long tool life

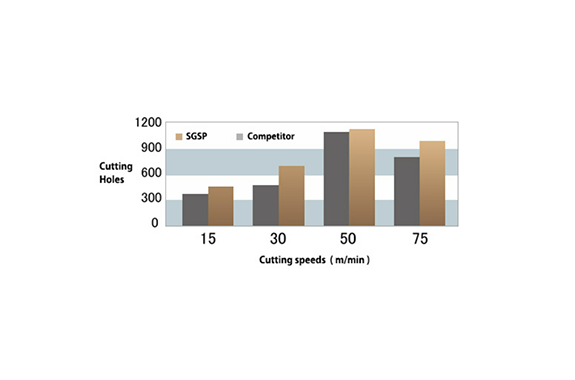

Comparison of cutting holes by cutting speeds
Thread size: M6 × 1
Work material: S50C (180HB)
Thread depth: 12mm
Drill hole Dia.: Ø5.1
Drill hole depth: 20mm (Blind holes)
Feed: Synchronized feed
Holder: Collet chuck
Machine: Vertical machining center
Cutting fluid: Water-soluble cutting fluid (External coolant)

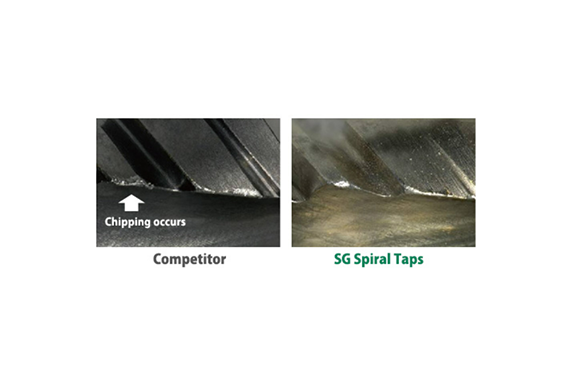

Comparison of wear after cutting 210 holes by cutting speed Vc30

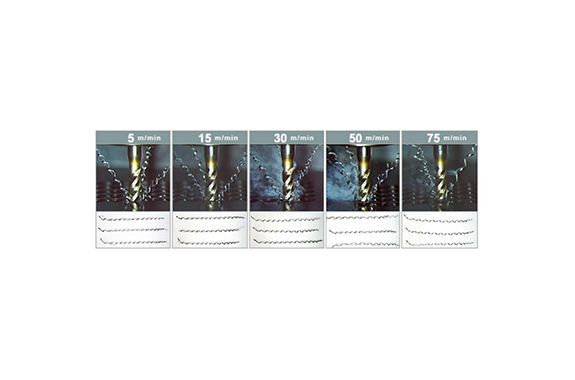

Cutting scenes and chips by every cutting speeds
Corresponding to every work materials

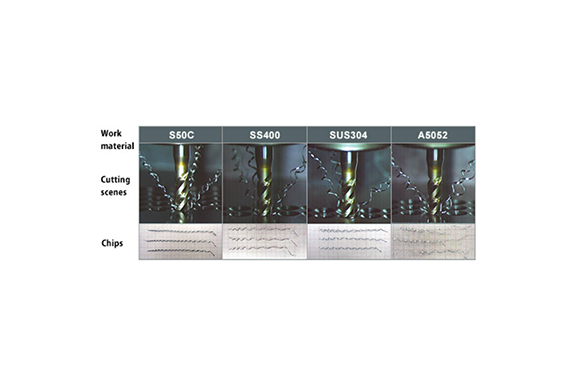

Cutting scenes and chips by every work material
Stable chips and cutting scene from Structural Steels to Stainless Steels. Aluminum Alloys Corresponding to every work materials
Long tool life with Stainless Steels

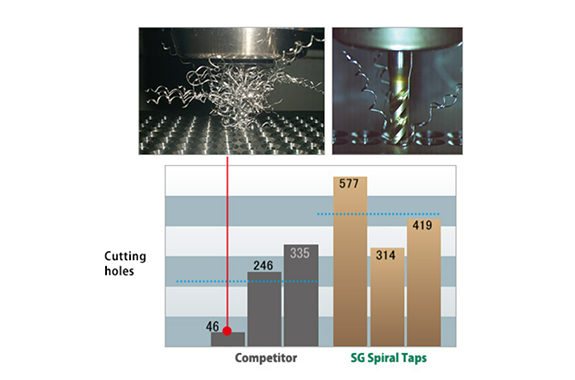

Comparison of cutting holes of SUS304
Thread size: M6 × 1
Work material: SUS304
Thread depth: 12mm
Cutting speed: 8m/min
Drill hole Dia.: Ø5.1
Drill hole depth: 19mm (Through holes)
Feed: Synchronized feed
Holder: Collet chuck
Machine: Vertical machining center
Cutting fluid: Water-soluble cutting fluid (External coolant)
