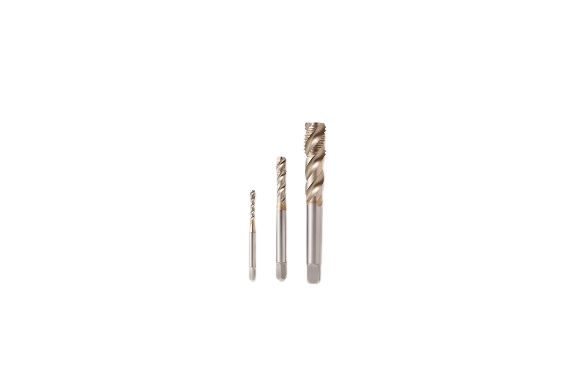

Nachi SG Spiral Taps Short Chamfer
Manufacturer: Nachi-fujikoshi corp
Model: SG
Features
Optimization shape of chamfer can make tool life longer

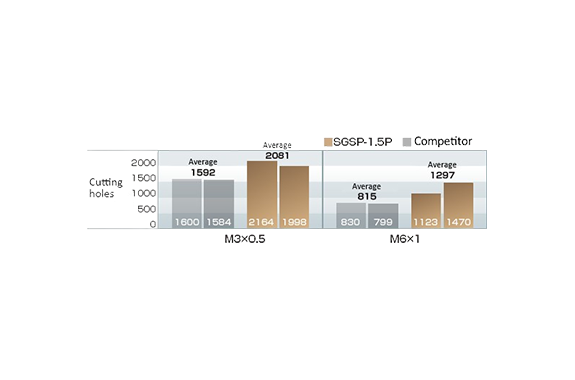

Cutting performance of Short Chamfer (SGSP-1.5P)
| Cutting condition | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Thread size | Thread depth | Drill Hole Dia | Cutting speed | Feed | Rotation | Work Material | Cutting Fluid | Machine | |
| M3×0.5 | 6mm | Ø2.6 (Blind holes) | 1590mm/min | 3180min-1 | S50C (180HB) | Water-soluble cutting fluid (External coolant) | Vertical Machining Center BT30 | ||
| M6×1 | 12mm | Ø5.1 (Blind holes) | 30m/min | 1591mm/min | 1591min-1 | Vertical Machining Center HSK63 | |||

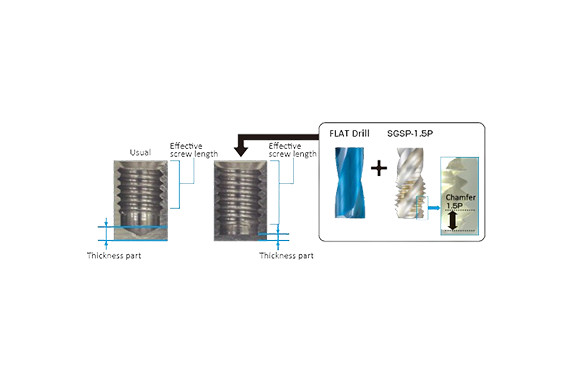

Securement of thin thickness and effective screw length are compatible. in combination with Flat drill
The minimum of a thickness part by using Flat drill The maximum of effective screw length by using Short Chamfer screw threads
