Nachi SRA166/210-01A Spot Welding Robots
Manufacturer: NACHI
Model: SRA166/210-01A
Features
World Class Speed Robot
Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design results in high acceleration and minimum vibration. Maximum speed on all axes reduces move time. All this provides dramatically improved productivity.
Superior Spot Welding Capability
Industry leading advanced servo gun software features and technologies.
SRA robot ease of use improves the bottom line
Improved drives and motors for accurate positioning and better repeatability.
Compact design allows closer installation in less floor space.
Improved energy efficiency
Power consumption reduced 15% from existing models by reducing the robot’s weight by 20% and using cutting edge motor drive controls.
Controller
FD11

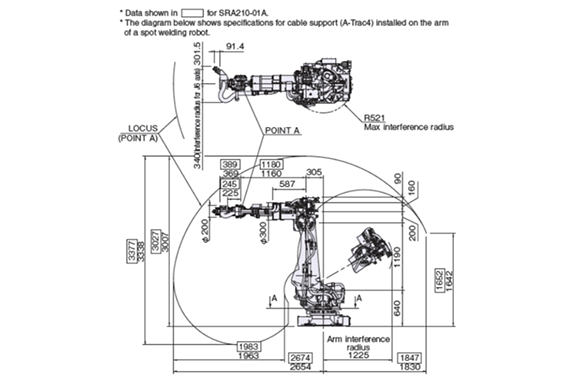

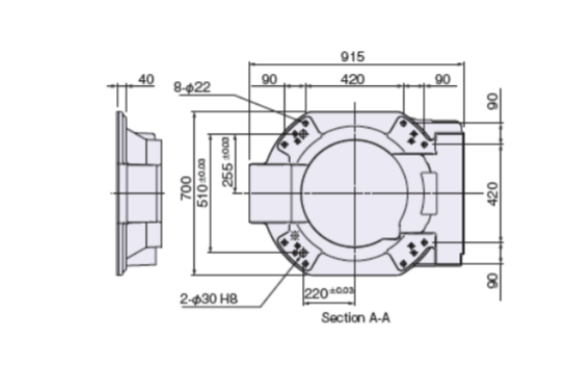

Operating range

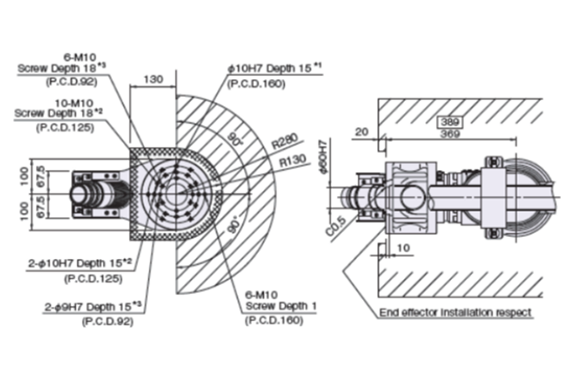

This screw supports up to 210 kg (P.C.D.160).
Use this screw for loads up to 166 kg (P.C.D.125).
Suitable for loads up to 100 kg (P.C.D.92).
The specifications are subject to changes without notice.
In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.
Specification
| Item | SRA166-01A | SRA210-01A |
|---|---|---|
| Structure | Articulated construction | Articulated construction |
| Number of axes | 6 | 6 |
| Drive system | AC servo system | AC servo system |
| Max. operating area | ||
| Arm – J1 (Swivel) | ±3.14 rad (±180°) | ±3.14 rad (±180°) |
| Arm – J2 (Forward/backward) | +1.05 to -1.40 rad (+60° to -80°) | same |
| Arm – J3 (Upward/downward) | +2.62 to -2.56 rad (+150° to -146.5°) | same |
| Wrist – J4 (Rotation 2) | ±3.67 rad (±210°) | same |
| Wrist – J5 (Bending) | ±2.09 rad (±120°) | same |
| Wrist – J6 (Rotation 1) | ±3.58 rad (±205°) | same |
| Max. velocity | ||
| Arm – J1 (Swivel) | 2.18 rad/s (125°/s) | 2.01 rad/s (115°/s) |
| Arm – J2 (Forward/backward) | 2.01 rad/s (115°/s) | 1.83 rad/s (105°/s) |
| Arm – J3 (Upward/downward) | 2.11 rad/s (121°/s) | 1.97 rad/s (113°/s) |
| Wrist – J4 (Rotation 2) | 3.14 rad/s (180°/s) | 2.44 rad/s (140°/s) |
| Wrist – J5 (Bending) | 3.02 rad/s (173°/s) | 2.32 rad/s (133°/s) |
| Wrist – J6 (Rotation 1) | 4.54 rad/s (260°/s) | 3.49 rad/s (200°/s) |
| Payload | Wrist: 166 kg Forearm (*1): 15 kg (max 60 kg) | Wrist: 210 kg Forearm (*1): 15 kg (max 60 kg) |
| Allowable static load torque | ||
| J4 (Rotation 2) | 951 N·m | 1,337 N·m |
| J5 (Bending) | 951 N·m | 1,337 N·m |
| J6 (Rotation 1) | 490 N·m | 720 N·m |
| *Max. allowable moment of inertia (2) | ||
| J4 (Rotation 2) | 88.9 kg·m² | 141.1 kg·m² |
| J5 (Bending) | 88.9 kg·m² | 141.1 kg·m² |
| J6 (Rotation 1) | 45.0 kg·m² | 79.0 kg·m² |
| *Position repeatability (3) | ±0.06 mm | ±0.06 mm |
| Ambient temperature | 0 to 45°C | 0 to 45°C |
| Installation | Floor mounted | Floor mounted |
| Robot mass | 1,060 kg | 1,090 kg |
(*1) Load specification of number 1 arm varies according to wrist load conditions and installation position.
(*2) Note that the allowable moment of inertia of wrist varies with the wrist load conditions.
(*3) JIS B 8432 compliant.
