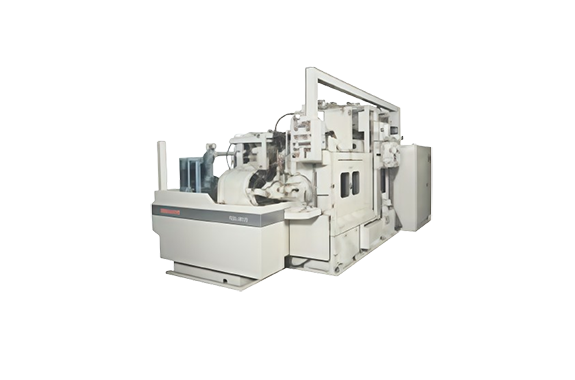

Nachi TSL Series Mechanical Turret Broaching Machines
Manufacturer: Nachi-fujikoshi corp
Model: TSL Series
Outline

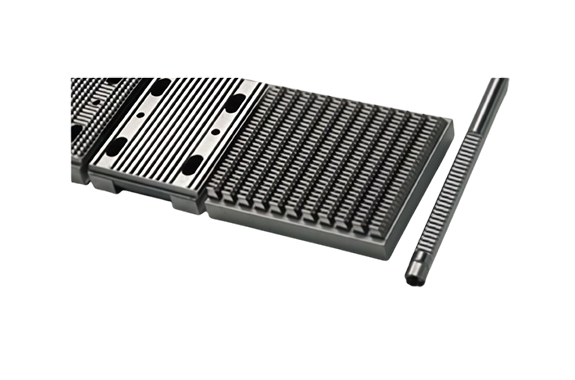

Rack surface processing machine
Small design. high efficiency and two way cutting
Turret type holder to meet a variety of work
Compact design to save energy and space
Specification
| TSL-2.5-10/12 | TSL-7.5-15 | TSL-7.5-25G | |
|---|---|---|---|
| Pulling force (KN) | 25 | 75 | 75 |
| Max. stroke (mm) | 1,000/1,200 | 1,500 | 2,500 |
| Cutting speed (m/min, 60Hz) | 10 | 11 | 11 |
| No. of broach attaching section | 2/4 | 4/6 | 6 |
| Main motor (kW) | AC Servo 4.4 | AC Servo 11 | AC Servo 11 |
| Machine height (mm) | 2,300 | 2,800 | 2,800 |
| Floor space (mm x mm) | 2,500 × 4,300 | 2,900 × 5,800 | 2,900 × 6,000 |
| Mass of Machine (kg) | 6,000 | 15,000 | 20,000 |
