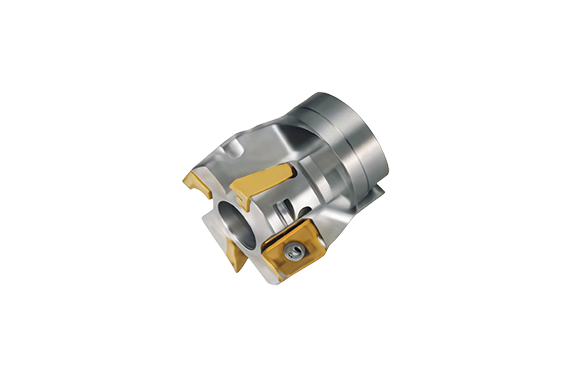

Nachi WAVY MILL NWEX Type Indexable End Mills
Manufacturer: Nachi-fujikoshi corp
Model: WAVY MILL NWEX
Features and Performance

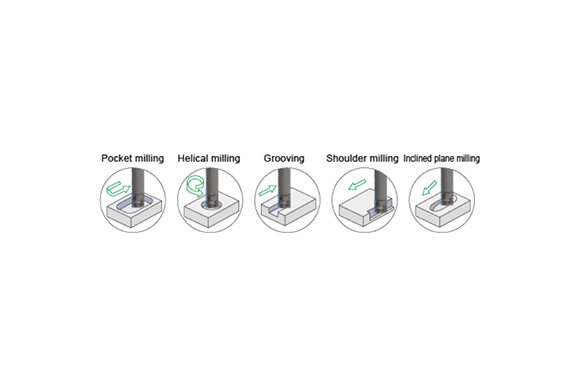

Suitable for a wide range of applications

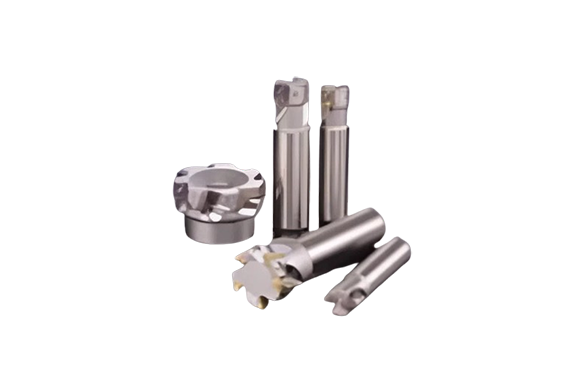

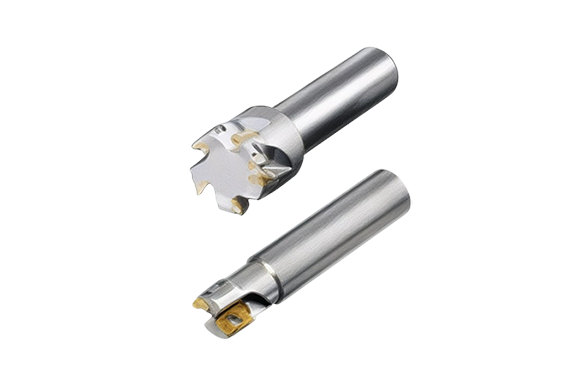

Product lineup
Model | Type | Ext. dia. (mm) | Shape | ||||
| ⌀14 | ⌀25 | ⌀40 | ⌀63 | ⌀125 | |||
| NWEX 2000E | Standard type | 14 | 63 |  | |||
| NWEX 2000EL | Long type | 14 | 40 | ||||
| NWEX 3000EE | Standard type | 25 | 63 | ||||
| NWEX 3000ES | Short type | 50 | 63 | ||||
| NWEX 3000EEL | Long type | 25 | 40 | 63 | |||
| NWEX 3000E-C | Coarse pitch type | 40 | 63 | ||||
| NWEX 3000ES-C | Short & Coarse pitch type | 50 | 63 | ||||
| NWEX 2000F | Standard type | 40 | 63 |  | |||
| NWEX 3000F | Standard type | 40 | 63 | ||||
| NWEX 3000R | Standard type | 80 | 125 | ||||
| NWEXF 3000R | Fine pitch type | 80 | 125 | ||||
Performance

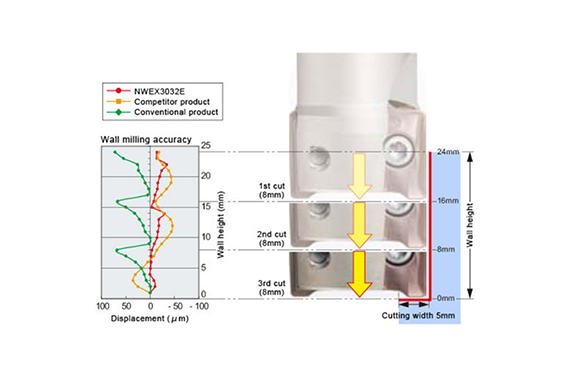

Side wall profile in shoulder milling
High-precision cutting edge minimizes milling surface gap. (less than 1/2 compared to other products)
