NACOL CO., LTD.

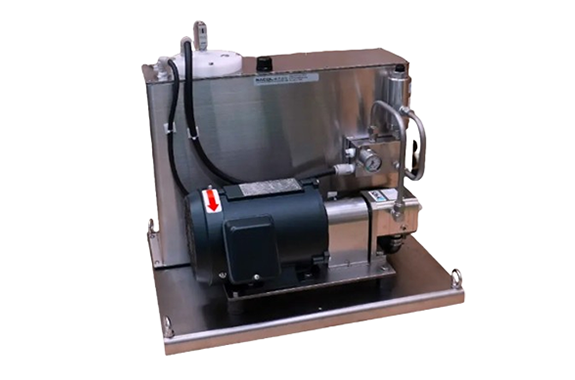

NACOL NPU Series Water Hydraulic Power Unit
Manufacturer: NACOL CO., LTD.
Model: NPU Series
Features
- The NPU series is a compact water pressure unit.
- It combines a NADS pump with an electric motor.
- In addition, it includes a relief valve, water tank, filter, and UV germicidal lamp.
- It also comes with a liquid level gauge and an air breather.
- Moreover, pressure sensors, thermo switches, and float switches are available as options.
- Inside the tank, a partition installs to remove air bubbles from the water.
Specifications
| Model Number | Push-away volume cc/rev | Maximum working pressure MPa | Rotation speed r/min | Water Pressure Output W | Tank capacity L | Mass kg | Drawing Download | |
|---|---|---|---|---|---|---|---|---|
| dxf | ||||||||
| NPU-075-015-①②③ | 3 | 4 | 300-1500 | 150 | 23 | 28 | NPU-075 Standard Diagram.dxf | NPU-075 Standard Diagram.pdf |
| NPU-075-025-①②③ | 4.5 | 250 | ||||||
| NPU-075-045-①②③ | 6.1 | 450 | ||||||
