Nagase RooTAC (TOTAKU)

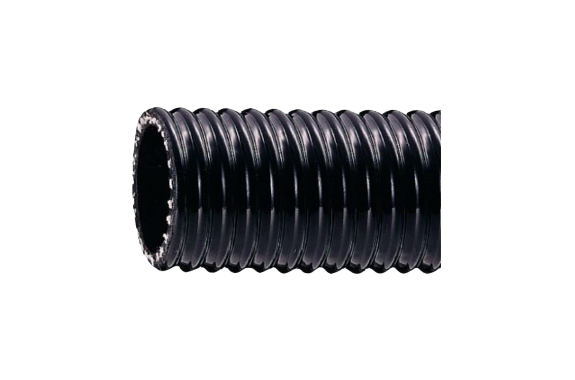

Nagase RooTac TOTAKU Line Power-ATO Oil-Resistant Hoses
Manufacturer: Nagase RooTAC Industries, Inc.
Model: Line Power-ATO
Feature
- About half the weight of a rubber hose with excellent flexibility.
- Oil-resistant rubber is used for the inner surface.
- Provides anti-static protection with conductive oil-resistant rubber and a built-in ground wire.

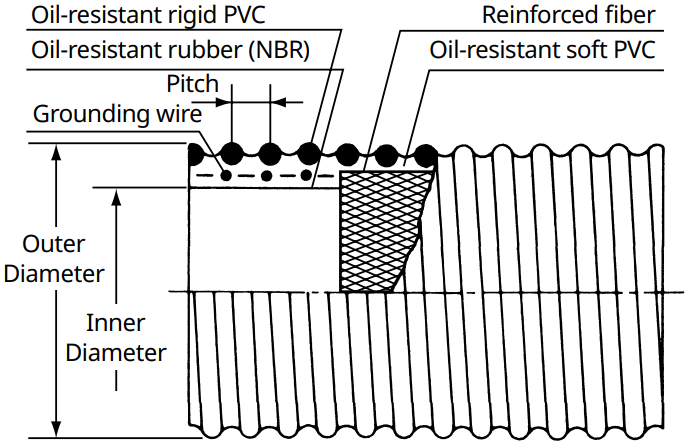

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Pitch | Reference Weight | Length | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) |
|---|---|---|---|---|---|---|---|
| 2 | 50 | 50.8 | 2.62 | 1.07 | 1590 | 101.53 psi / 0.70 MPa | 17.72 in / 450 mm |
| 2.5 | 65 | 63.5 | 3.21 | 1.32 | 1970 | 101.53 psi / 0.70 MPa | 21.65 in / 550 mm |
| 3 | 75 | 76.2 | 3.89 | 1.96 | 2920 | 101.53 psi / 0.70 MPa | 30.51 in / 775 mm |
| 4 | 100 | 101.6 | 5.12 | 3.09 | 4600 | 101.53 psi / 0.70 MPa | 49.21 in / 1250 mm |
| 5 | 125 | 127.0 | 6.18 | 4.08 | 6070 | 101.53 psi / 0.70 MPa | 59.06 in / 1500 mm |
| 6* | 150 | 152.4 | 7.38 | 5.20 | 7740 | 101.53 psi / 0.70 MPa | 78.74 in / 2000 mm |
