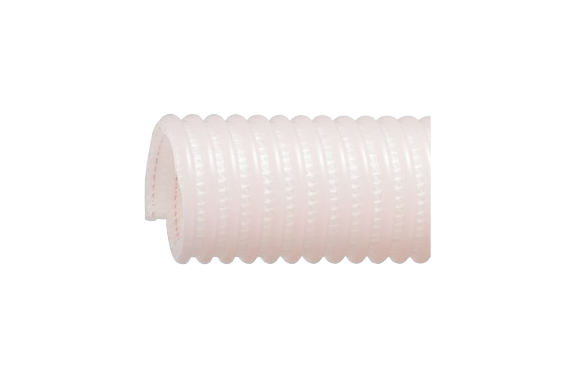

Nagase RooTac TOTAKU Non-PVC Hose ECO Line-Ho 100°C
Manufacturer: Nagase RooTAC Industries, Inc.
Model: ECO Line-Ho 100°C
Feature
- Suitable for transporting oils, fatty foods, and general food products.
- Can be cleaned with hot water at temperatures up to 212°F (100°C) or with 95% ethanol, ensuring hygienic use.
- Safe for incineration after use without emitting harmful gases. (Includes hydrogen chloride, sulfur oxides, nitrogen oxides, hydrogen cyanide, and ammonia.)
- Semi-transparent construction allows for easy inspection of transported materials.
- Reinforced with a reinforcing fiber, offering pressure resistance up to 101.5 psi (0.7 MPa).

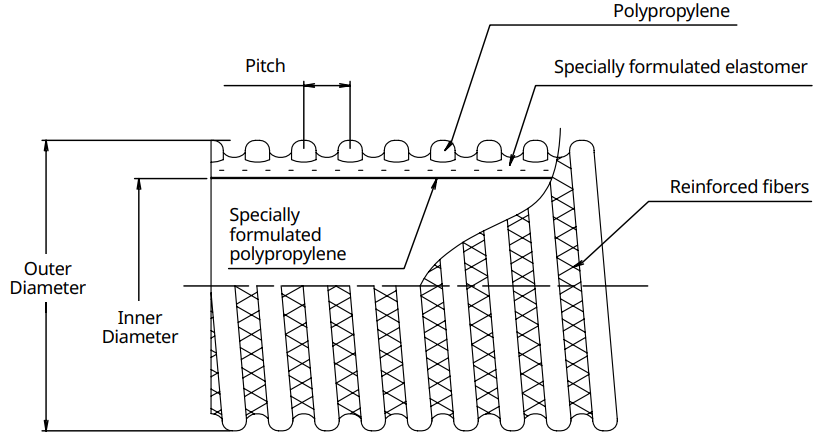

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Pitch | Reference Weight | Length | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | inch | mm | hlbs/ft | g/m | feet | m | psi | MPa | inch | mm |
| 1 | 25 | 1.00 | 25.4 | 1.52 | 38.6 | 0.30 | 7.5 | 0.31 | 460 | 65/164 | 20/50 | 101.53 | 0.70 | 4.72 | 120 |
| 1.5 | 38 | 1.50 | 38.0 | 2.17 | 55.0 | 0.39 | 10.0 | 0.57 | 850 | 65/164 | 20/50 | 101.53 | 0.70 | 9.45 | 240 |
| 2 | 50 | 2.00 | 50.8 | 2.72 | 69.0 | 0.43 | 11.0 | 0.81 | 1210 | 65/164 | 20/50 | 101.53 | 0.70 | 11.81 | 300 |
| Nominal Diameter | Allowable Pressure | ||||||
|---|---|---|---|---|---|---|---|
| 104°F to 140°F (40°C to 60°C) | 140°F to 176°F (60°C to 80°C) | 176°F to 212°F (80°C to 100°C) | |||||
| inch | mm | inch | mm | inch | mm | inch | mm |
| 1 | 25 | 87.02 | 0.60 | 72.52 | 0.50 | 58.02 | 0.40 |
| 1.5 | 38 | 87.02 | 0.60 | 72.52 | 0.50 | 58.02 | 0.40 |
| 2 | 50 | 79.77 | 0.55 | 58.02 | 0.40 | 43.51 | 0.30 |
