Nagase RooTAC (TOTAKU)

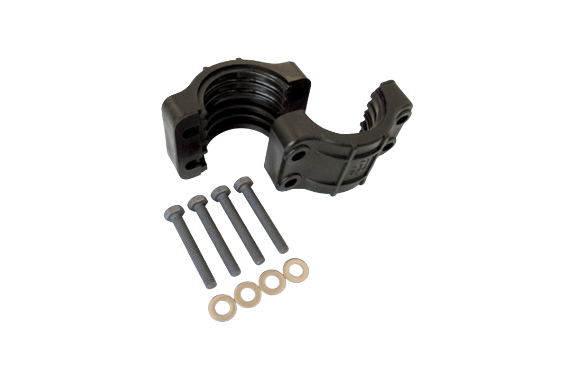

Nagase RooTac SHIMETAC For TOTAKU ECO Line-Ho 100℃
Manufacturer: Nagase RooTAC Industries, Inc.
Model: SHIMETAC for ECO Line-Ho 100℃
Feature
- Made from resin, ensuring a lightweight design.
- Rust-free due to its resin construction.
- Equipped with Stainless Steel 304 bolts, flat washers, and nuts.
- Reliable pressure resistance performance.
- Fittings are removable for easy cleaning.
- Designed with a secure structure to prevent detachment.
Applicable Sizes
- 1.5 inches (φ38 mm)
- 2 inches (φ50 mm)
Pressure Resistance Performance at 212°F (100°C)
| Nominal Diameter | Processing Methods | ||||||
|---|---|---|---|---|---|---|---|
| EPDM Corrugated Sealing with Stainless Steel Crimping | Band Tightening | SHIMETAC Tightening | |||||
| inch | mm | inch | mm | inch | mm | inch | mm |
| 1 | 25 | 58.02 | 0.40 | 14.50 | 0.10 | — | — |
| 1.5 | 38 | 58.02 | 0.40 | 14.50 | 0.10 | 58.02 | 0.40 |
| 2 | 50 | 43.51 | 0.30 | 14.50 | 0.10 | 43.51 | 0.30 |
