Nagase RooTAC (TOTAKU)

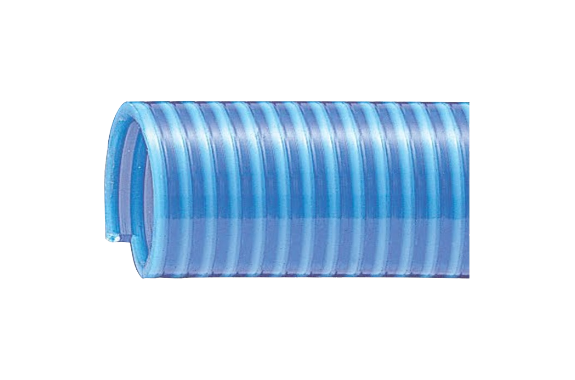

Nagase RooTac TOTAKU Hose For Vacuum Truck Clean-S
Manufacturer: Nagase RooTAC Industries, Inc.
Model: Clean-S
Feature
- A lightweight version of the TOTAKU CLEAN-W.
- Exclusively for vacuum trucks.

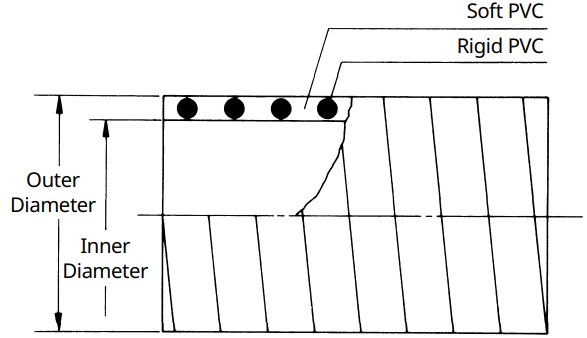

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Reference Weight | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | lbs/ft | g/m | psi | MPa | inch | mm |
| 2 | 48 | 1.89 | 48.0 | 2.26 | 57.5 | 0.70 | 1035 | 43.51 | 0.30 | 17.72 | 450 |
