Nakatani Co Ltd

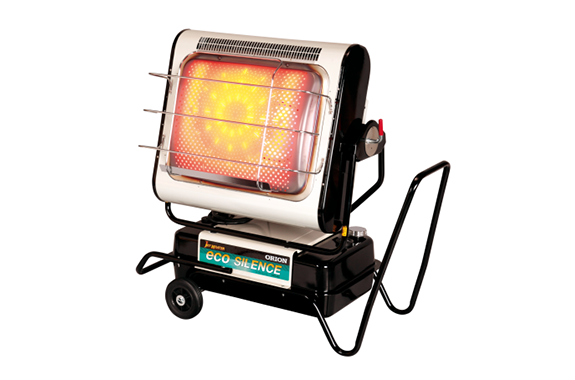

Nakatani HRR480B Jet Heater BRITE EcoSilence
Manufacturer: Nakatani Co., Ltd.
Model: HRR480B
Overview
Orion Machinery’s portable heaters and dryers is use in a variety of situations, including heating large spaces such as factories and school gymnasiums, curing concrete at construction sites, and various drying applications.
Orion Machinery’s unique combustion technology, which pursues comfort such as efficiency and quietness, has created eco-heaters that use less fuel and are considerate of the global environment.
Features
Main functions and safety devices
Child Lock
Press and hold for 3 seconds to activate.
Alarm Monitor
A lamp or error code will notify you when a safety device has been activated.
Earthquake resistance (earthquake-resistant automatic fire extinguishing)
It will automatically extinguish the fire when a strong earthquake or impact occurs.
Ignition (Ignition Safety)
It will automatically extinguish the fire in the event of ignition failure, mid-fire, abnormal combustion, or running out of oil.
Power outage (power outage safety)
Prevents the unit from automatically starting operation when power is restore after a power outage.
Overheating Prevention
The heater will automatically shut off if the inside of the heater becomes abnormally overheated.
Overload (overload protection)
If an overcurrent occurs, the electrical circuit will cut off and operation will stop.
Fan abnormality (fan rotation stopped abnormally)
The fire will automatically be extinguished if the combustion fan speed becomes abnormal.
Oil shortage (oil shortage detection)
An alarm will sound when the oil tank is nearly empty while driving.
High voltage (high voltage stop)
If the power supply voltage becomes abnormally high during operation, the operation will stop.
Low voltage (low voltage alarm)
An alarm will sound when the power supply voltage is abnormally low.
HRR480B EcoSilence®
(No automatic swing function)
Heat output 40.7 to 24.3kW (5-stage combustion)
Operating noise (50/60Hz) 53-57/53-57dB
