Features

High-performance treatment tank
Treatment water oil concentration of 3mg/L or less as standard
The newly developed treatment tank clears the nationwide wastewater standard of 5 mg/L
It can also meet the additional wastewater standards set by prefectures.
* Water Pollution Control Act (normal hexane extracts)

Improved usability
Treatment tank is easy to replace and reuse
Remove the tube from the thumbscrew and one-touch joint to quickly replace the treatment tank containing the adsorbent. Minimal dripping occurs during replacement

[Request] Please be sure to return the replaced treatment tank to Orion Machinery. Remove the tube from the thumbscrew and one-touch joint. Replace the treatment tank containing the adsorbent in a short time with minimal dripping

No power supply required. *
Drain is pumped using compressed air, so compressed air is no longer required to operate the unit.
*Excluding cold weather model DPS□□□-HG□

The inspection tank
is located at the front of the unit and allows easy visual inspection of the transparency of the treated water.

Compatible with a variety of operating environments
Cold weather specifications
The built-in fan heater
detects the temperature inside the unit* and operates automatically
to prevent the drain from freezing.
*Operates when the temperature inside the unit is below 5°C
Ambient operating temperature range: -10 to 40°C, single-phase AC200V required.

Outdoor use:
By using the rain cover accessory (sold separately), it can be installed outdoors. The rain cover has fasteners on all four corners, making it easy to access during inspection.

Caster-equipped models are
available. Combined with the slim shape, it can be installed anywhere.
* Caster-equipped: DPS-□□□-G2

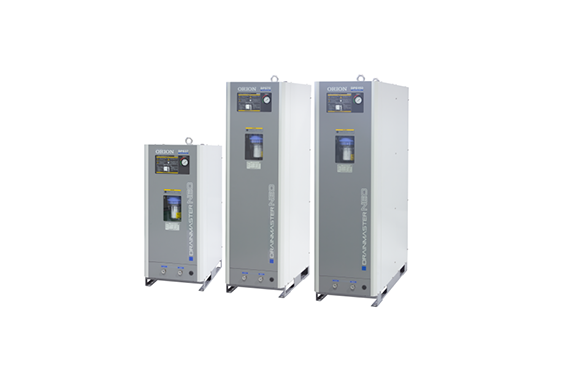

DPS37-G1 (G2) / DPS75-G1 (G2) / DPS150-G1 (G2)
Cold weather specifications: DPS37-H-G1 (G2) / DPS75-HG1 (G2) / DPS150-HG1 (G2)

Applications

Drain water treatment
