Manufacturer: Nakatani Co., Ltd.

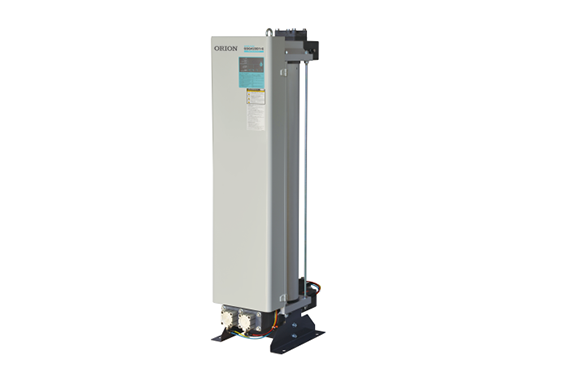

Model: QSQ

Features

Energy-saving operation function with dew point sensor

Medium and large models include a dew point sensor that automatically stops purge air discharge, cutting unnecessary air loss and boosting energy efficiency.

*Medium: QSQ080D1-E to 270D1-E
*Large: QSQ420D1-E to 2500D1-E / 420D1-EDC to 2500D1-EDC

Digital display of pressure and dew point:

These models use digital displays for both air pressure and dew point. The dew point display now shows values in 5°C increments, replacing the older LED zone display for better precision and visibility.

Compatible with Orion IoT system

Automatic switching of adsorption columns using a pressure sensor (large series)
Heatless dryers feature an even number of columns filled with adsorbent, divided into two operating groups.

The interconnection specifications allow for large-scale equipment with high flow rates and central use
(special specifications)
. As a factory utility facility, it can handle large flow rates of over 25.0 m3/min (maximum 50 m3/min).
Please consider this for new construction projects for electronic device factories and secondary battery-related factories.
