Nakayama Co.,Ltd.

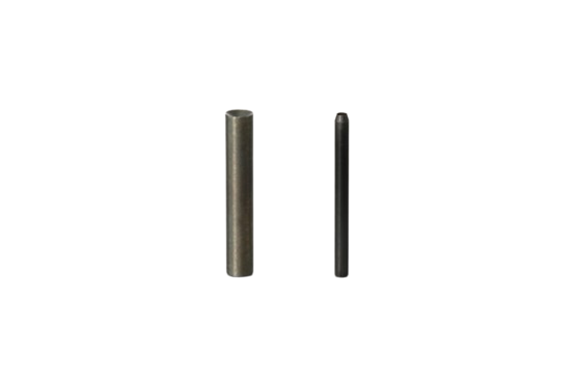

Nakayama Bowl Punches
Manufacturer: Nakayama Co.,Ltd.
BOWL PUNCHES
Top shape is like dish plate. It is used for stopping tearing or products which are hardly got out of the punch.

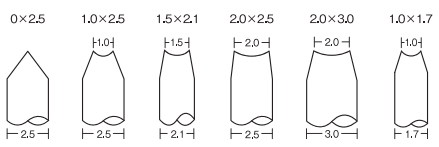

| HEIGHT （mm） | EDGE DIAMETER （ϕmm） | INTERVAL （mm） | REMARKS | |
|---|---|---|---|---|
| 23.5 | 0.0X2.5 (Outer Diameter) | — | ||

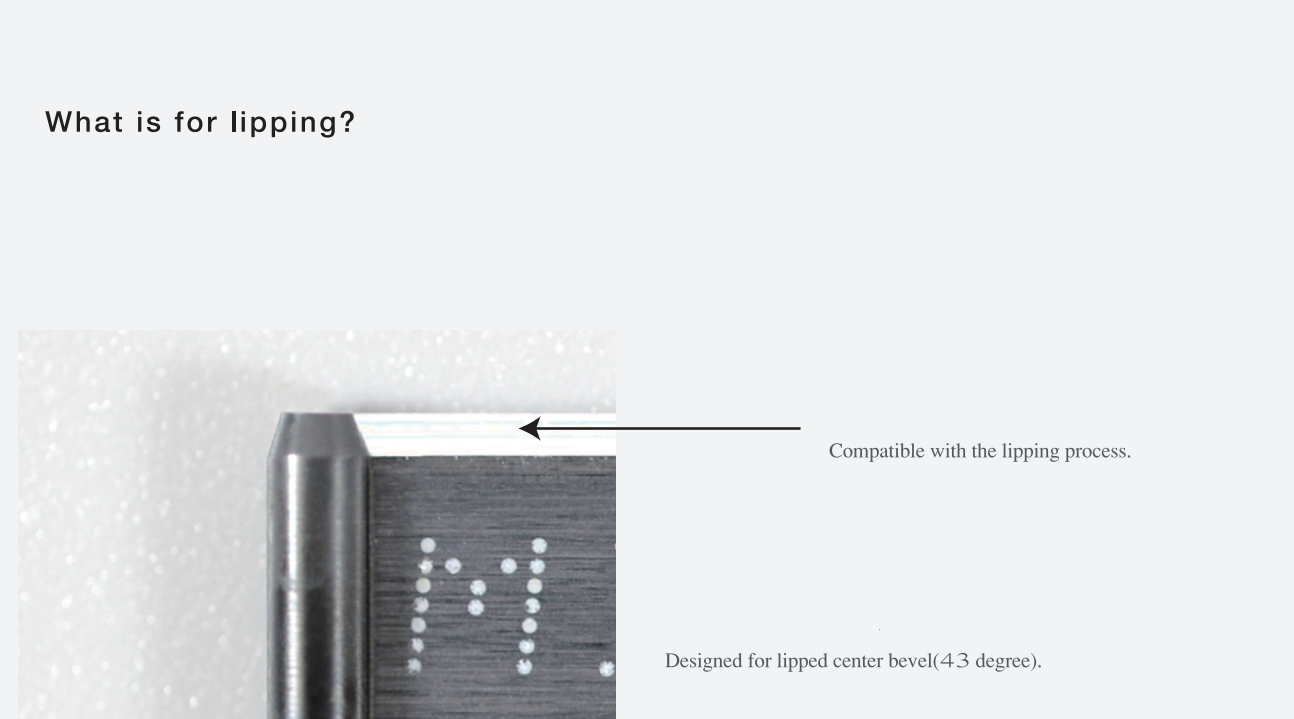

| 1.0X1.7 (Outer Diameter) | — | For Corner Cutting for lipping | ||
| 1.5X2.1(Outer Diameter) | For Corner Cutting for lipping | |||
| 2.0〜3.0 | 0.5 | Outer Diameter = Edge Diameter (Straight) 0D=ED | ||
| 23.6 | 0.0X2.5 (Outer Diameter) | |||
| 1.0X1.7 (Outer Diameter) | For Corner Cutting for lipping | |||
| 1.0X2.5 (Outer Diameter) | ||||
| 1.5X2.1(Outer Diameter) | For Corner Cutting for lipping | |||
| 1.5X2.5 (Outer Diameter) | ||||
| 2.0X2.5 (Outer Diameter) | ||||
| 2.0X3.0 (Outer Diameter) | ||||
| 2.0〜4.0 | 0.5 | Outer Diameter = Edge Diameter (Straight） 0D=ED | ||
※OD ・・・ Outside Diameter ED ・・・ Edge Diameter
