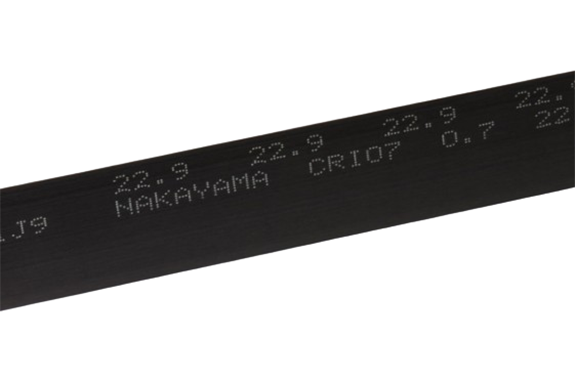

Nakayama CRS/ CRI Series Creasing Rules

Manufacturer: Nakayama Co.,Ltd.
Model: CRS/ CRI Series

02 Thomson Blade (Creasing, Perforating, Lead, etc.)

SPECIAL CREASING RULES(STEEL)
CREASING RULES(IRON)

It is used to add fold lines to the sheet.
Various shapes are available according to materials such as paperboard, cardboard, PP, PET, etc.

CREASING RULE(STEEL)Creasing rules made of hardened material.
CREASING RULES(IRON)Creasing rules made of raw materials.

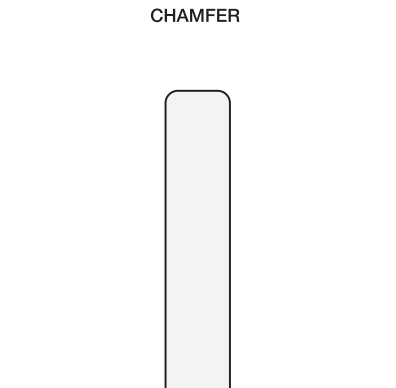

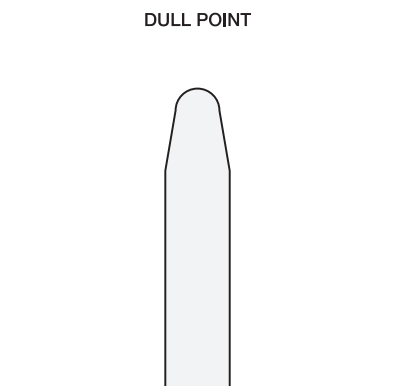

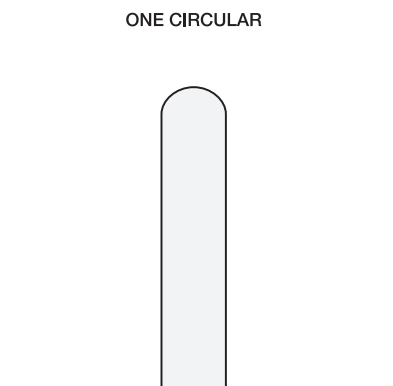

Standard shape.Tapered tip. Suitable for plastic sheets such as PET.The corners of both sides are chamfered.
Used for cardboards because it can be folded wide.

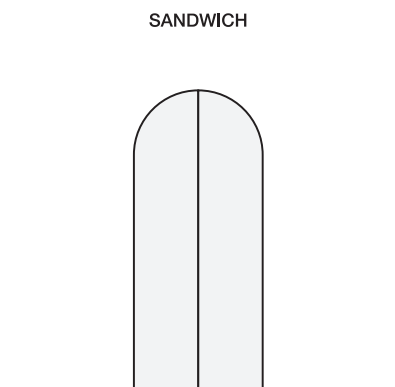

Creasing rules for use in pairs.

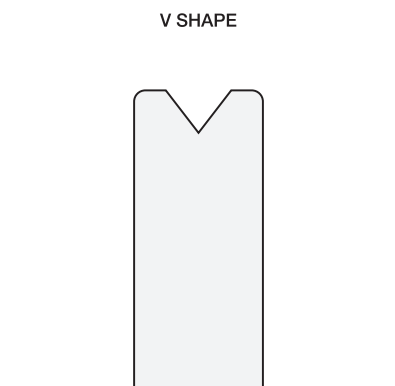

It is divided into two parts for easy processing.		The tip is V-shaped. Used for cardboards because it can be folded wide.

STOCK ITEMS OF COIL

COIL WINDINGITEMTHICKNESS (mm)HEIGHT (mm)HARDNESS(HS)COLORSHAPECODE
B470CRS07
(Steel Creasing Rule)		0.722.960BrownOne Circular340393
0.723.060BrownOne Circular340205
0.723.0560BrownOne Circular340306
0.723.160BrownOne Circular340219
0.723.1560BrownOne Circular340316
0.723.260BrownOne Circular340224
A470CRS07
(Steel Creasing Rule)		0.723.160BrownOne Circular340208
B470CRI07
(Iron Creasing Rule)		0.723.1—SilverOne Circular342115
A470CRI07
(Iron Creasing Rule)		0.723.6—SilverOne Circular342142
B520CRI14
(Iron Creasing Rule)		1.422.8—SilverOne Circular342687

CREASING RULES (IRON)

ITEMTHICKNESS(mm)HEIGHT(mm)HARDNESS(HS)COLORSHAPECODE
CRS070.722.960BrownOne Circular340190
0.722.9560BrownOne Circular340295
0.723.060BrownOne Circular340200
0.723.0560BrownOne Circular340305
0.723.160BrownOne Circular340210
0.723.1560BrownOne Circular340315
0.723.260BrownOne Circular340220
0.723.360BrownOne Circular340230
0.723.460BrownOne Circular340240
0.723.4560BrownOne Circular340245
0.723.560BrownOne Circular340250
0.723.660BrownOne Circular340260
CRS07D0.723.160BrownDull Point 0.4340212
0.723.360BrownDull Point 0.4340231
0.723.4560BrownDull Point 0.3340246
CRS07P0.723.4560BrownDull Point 0.2340247
CRS090.922.860BrownOne Circular340510
0.922.960BrownOne Circular340520
0.923.060BrownOne Circular340530
0.923.160BrownOne Circular340540
0.923.660BrownOne Circular340565

※The length of the standard stock item is 909mm.

CREASING RULES (IRON)

ITEMTHICKNESS(mm)HElGHT(mm)COLORSHAPECODE
CRI070.721.8SilverOne Circular342030
0.722.0SilverOn© Circular342040
0.722.5SilverOne Circular342050
0.722.8SilverOne Circular342080
0.722.9SilverOne Circular342090
0.723.0SilverOne Circular342100
0.723.1SilverOne Circular342110
0.723.2SilverOne Circular342120
0.723.6SilverOne Circular342141
CRI090.921.8SilverOne Circular342230
0.922.0SilverOne Circular342240
0.922.5SilverOne Circular342250
0.922.6SilverOne Circular342260
0.922.7SilverOne Circular342270
0.922.8SilverOne Circular342280
0.922.9SilverOne Circular342290
0.923.0SilverOne Circular342300
0.923.1SilverOne Circular342310
CR|101.022.8SilverOne Circular342480
1.022.9SilverOne Circular342490
1.023.0SilverOne Circular342500
1.023.1SilverOne Circular342510
CA1141.421.5SilverOne Circular342610
1.422.0SilverOne Circular342640
1.422.3SilverOne Circular342645
1.422.5SilverOne Circular342650
1.422.6SilverOne Circular342660
1.422.7SilverOne Circular342670
1.422.8SilverOne Circular342680
1.422.8SilverChamfer342682
1.422.9SilverOne Circular342690
1.423.0SilverOne Circular342700
1.423.1SilverOne Circular342710

CREASING RULES (IRON)

ITEMTHICKNESS(mm)HEIGHT(mm)COLORSHAPECODE
CRI181.822.0SilverOne Circular343240
1.822.5SilverOne Circular343250
1.822.8SilverOne Circular343280
1.823.0SilverOne Circular343300
1.823.1SilverOne Circular343310
CRI202.022.0SilverOne Circular343401
2.022.3SilverOne Circular343430
2.022.5SilverOne Circular343450
2.022.6SilverOne Circular343460
2.022.8SilverOne Circular343480
2.022.9SilverOne Circular343490
2.023.0SilverOne Circular343500
2.023.1SilverOne Circular343510
CRI303.021.6SilverOne Circular343720
3.022.0SilverOne Circular343742
3.022.3SilverOne Circular343747
3.022.5SilverOne Circular343750
3.022.6SilverOne Circular343760
3.022.7SilverOne Circular343770
3.022.8SilverOne Circular343780
3.022.9SilverOne Circular343790
3.023.0SilverOne Circular343800
3.023.1SilverOne Circular343810

V-SHAPE

ITEMTHICKNESS(mm)HEIGHT(mm)COLORLENGTH(mm)SHAPECODE
CRI30V3.022.5Silver1000V Shape343754
3.022.8Silver1000V Shape343783
3.022.9Silver1000V Shape343791
3.023.0Silver1000V Shape343801

SANDWICH

ITEMTHICKNESS(mm)HEIGHT(mm)COLORSHAPECODE
CRI28S2.822.5SilverSandwich343610
2.822.8SilverSandwich343620

※The length of the standard stock item is 909mm.
