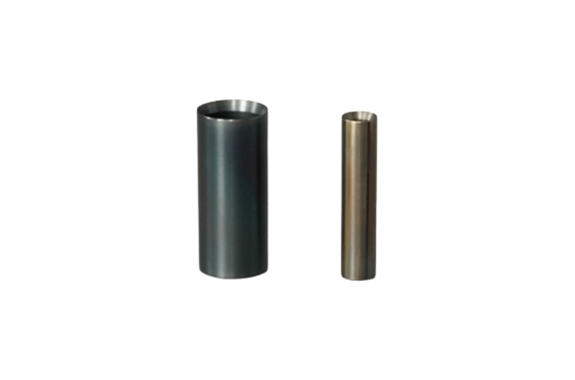

Nakayama Drilled Punches (Inside Bevel)
Manufacturer: Nakayama Co.,Ltd.
DRILLED PUNCHES (INSIDE BEVEL)
Inside has got gradient. It is suitable for making a cross section of products straight.
| HEIGHT (mm) | EDGE DIAMETER (ϕmm) | INTERVAL (mm) | THICKNESS (mm) | BEVEL | REMARKS |
|---|---|---|---|---|---|
| 23.6 | 2.0〜15.0 | 0.5 | 0.7 | Inner Gradient (Inside) | Outer Diameter = Edge Diameter + 0.2mm |
| 16.0〜30.0 | 1.0 | 0.7 | Inner Gradient (Inside) | Outer Diameter = Edge Diameter + 0.2mm |
※2.0mm is excemption and the OD is 2.4mm.
