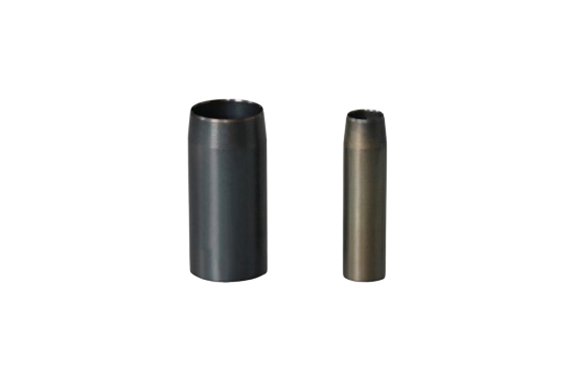

Nakayama Drilled Punches (Outside Bevel)
Manufacturer: Nakayama Co.,Ltd.

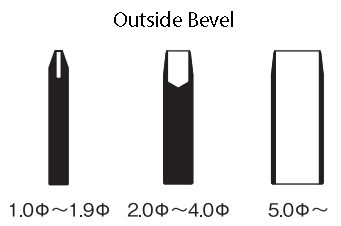

DRILLED PUNCHES (OUTSIDE BEVEL)
Outside of the edge has got gradient. It is suitable for making a cross section of products straight.
| HEIGHT (mm) | EDGE DIAMETER(ϕ mm) | INTERVAL (mm) | THICKNESS (mm) | BEVEL | REMARKS |
|---|---|---|---|---|---|
| 23.6 | 1.0〜1.9 | 0.1 | 0.7 | Outer Gradient (Outside) | Outer Diameter = Edge Diameter + 1.4mm |
| 2.0 〜30.0 | 0.5 | 0.7 | Outer Gradient (Outside) | Outer Diameter = Edge Diameter + 1.2mm |
